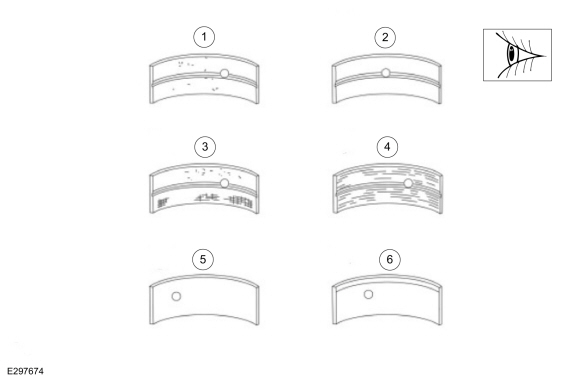

Ford Fusion: Engine System - General Information / Bearing Inspection. General Procedures

Engine. Diagnosis and Testing

Inspection and Verification - Engine Performance NOTE: There are 2 diagnostic paths that can be followed depending on the type of engine concern. Carry out Inspection and Verification - Engine Performance or Inspection and Verification - NVH...

Connecting Rod Bearing Journal Clearance. General Procedures

Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: The crankshaft connecting rod journals must be within specifications to check the connecting rod bearing journal clearance...
