Ford Fusion: Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4 / Charge Air Cooler (CAC) Radiator. Removal and Installation

Special Tool(s) / General Equipment

Cable Ties
Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

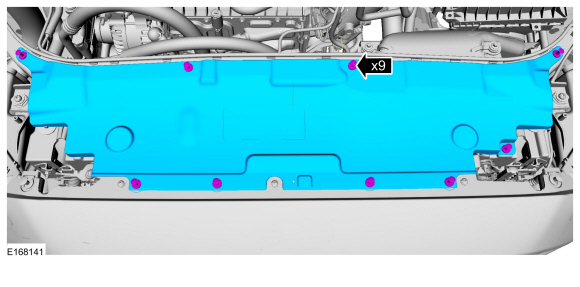

  1. Remove the retainers and the radiator sight shield.
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation

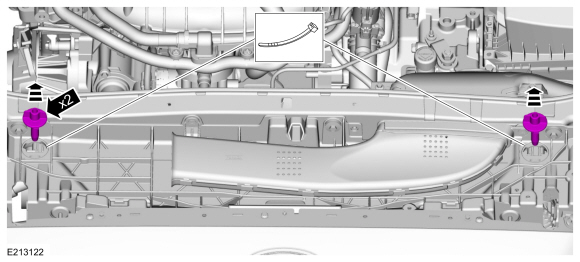

  1. Remove the upper radiator guide pins and support the radiator using cable ties.
    Use the General Equipment: Cable Ties
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation
  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
    1. Both sides.

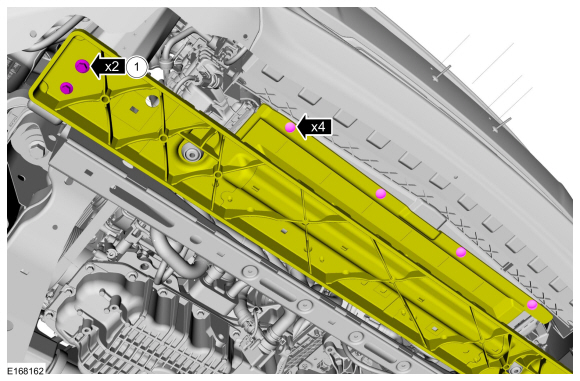

      Remove the lower radiator support bolts and release the clips.
      Torque: 18 lb.ft (24 Nm)
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation

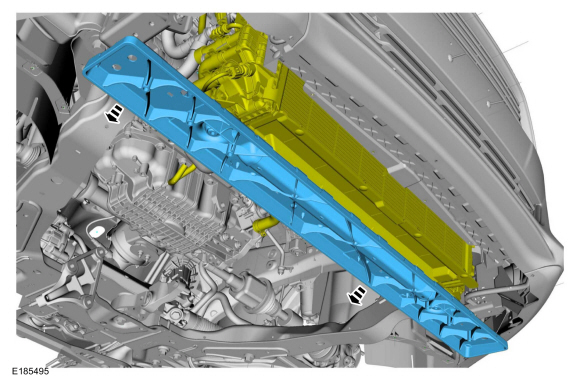

  1. Remove the lower radiator support.
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation

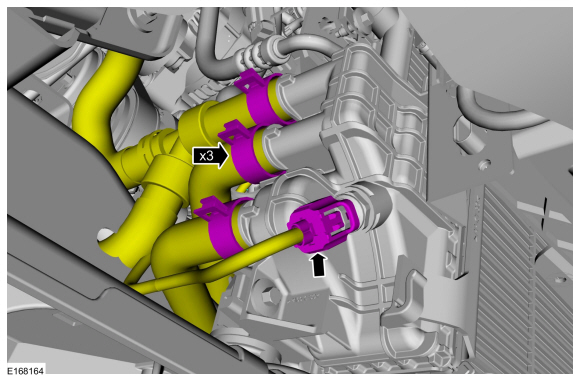

  1. Release the clamps, disconnect the coolant hoses and the electrical connector.
    Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation

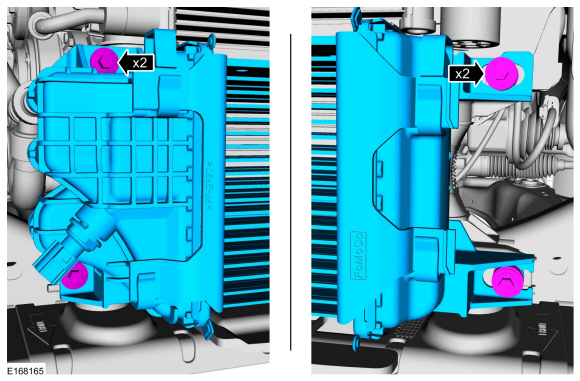

  1. Remove the bolts and the CAC radiator.
    Torque: 53 lb.in (6 Nm)
Ford Fusion. Charge Air Cooler (CAC) Radiator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
