Ford Fusion: Engine System - General Information / Exhaust Manifold Cleaning and Inspection. General Procedures

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine System - General Information / Exhaust Manifold Cleaning and Inspection. General Procedures

Special Tool(s) / General Equipment

Feeler Gauge

Cleaning

  1. Clean the exhaust manifold using a suitable solvent. Use a plastic scraping tool to clean the gasket sealing surfaces.

Inspection

  1. NOTE: New exhaust manifold gaskets, studs, nuts and/or bolts must be installed when an exhaust manifold is serviced.

    NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

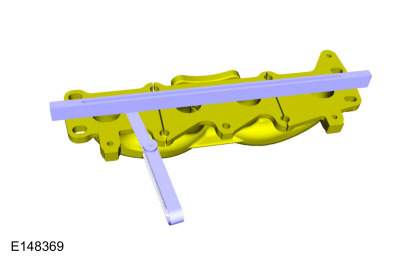

    Using the Straightedge and a Feeler Gauge Set, check the exhaust manifold sealing surface for warpage. If the warpage is greater than 0.76 mm (0.0299 in), install a new exhaust manifold.
    Use the General Equipment: Feeler Gauge
Ford Fusion. Exhaust Manifold Cleaning and Inspection. General Procedures

    Cylinder Head Distortion. General Procedures

    Special Tool(s) / General Equipment Feeler Gauge Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Make sure all cylinder head surfaces are clear of any gasket material, silicone sealant, oil and coolant...

    Piston Inspection. General Procedures

    Inspection NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur. Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons...
