Ford Fusion: Front Seats / Front Seat Lumbar Assembly. Removal and Installation
Removal
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-
-
If equipped.

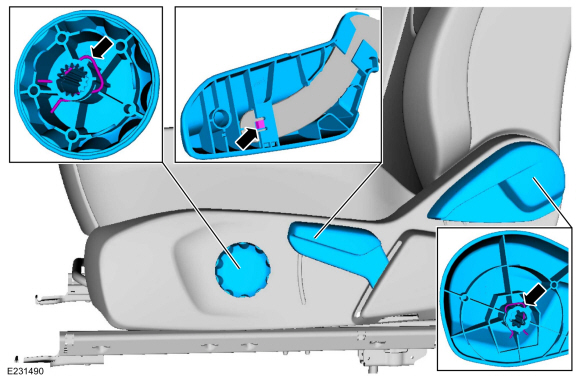

Release the lumbar knob retaining clip and remove the lumbar knob.
-
If equipped.
Release the height adjust handle locking tab and remove the height adjust handle.
-
If equipped.
Release the recline handle retaining clip and remove the recline handle.
-

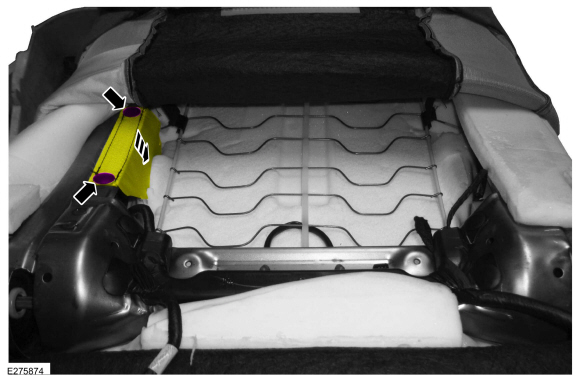

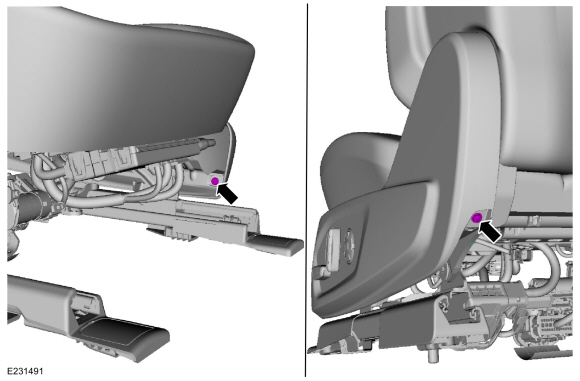

Remove the side shield screws.
-

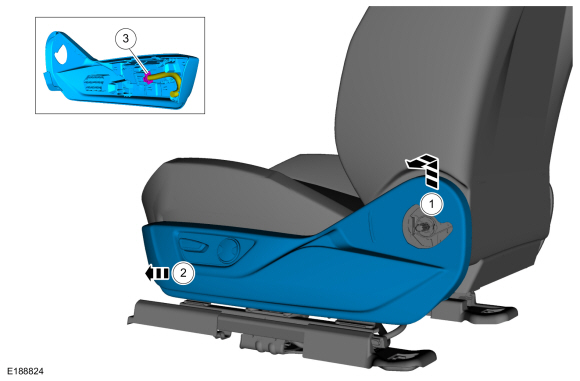

Remove the side shield.
-
Lift up on the rear of the side shield and pull outward.
-
Push the side shield forward.
-
If equipped.

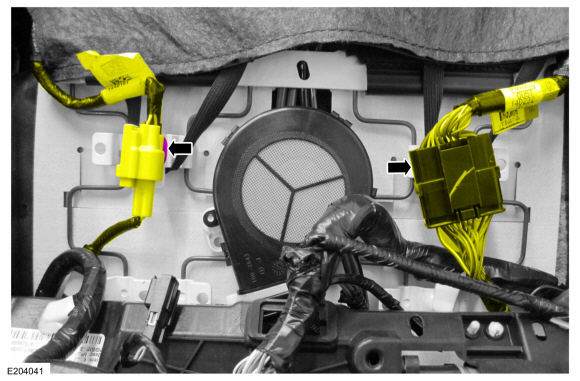

Disconnect the electrical connector.
-
NOTE:
Power seat shown, others similar.
Detach the electrical connector retainers and position the wire harnesses aside.
-

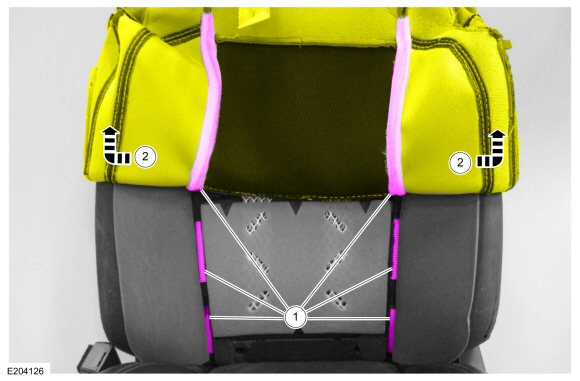

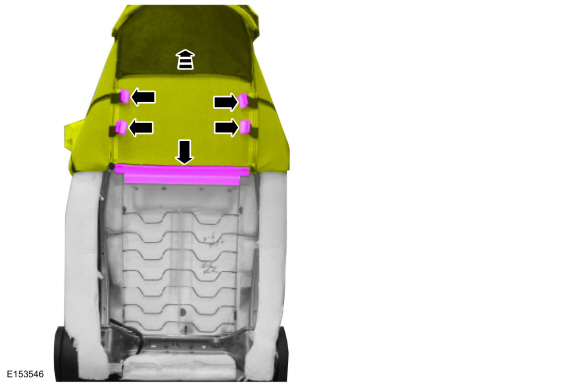

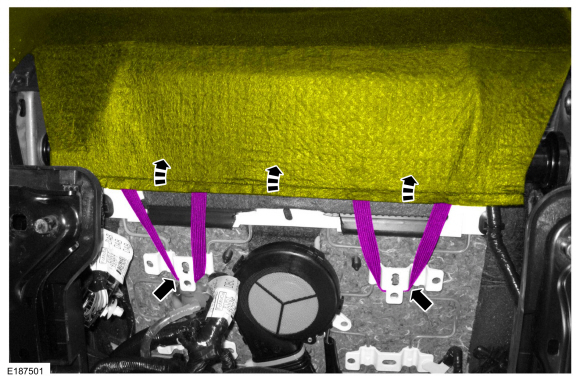

Detach the backrest cover straps and position the backrest cover upward.
-
-
Remove the pin-type retainers.
-
Detach the hook-and-loop strips.
-
Lift the backrest cover flap.
-
Position the front seat backrest cover.
-
Release the J-clip.
-
Position the backrest cover from between the seat cushion and backrest cushion.
-

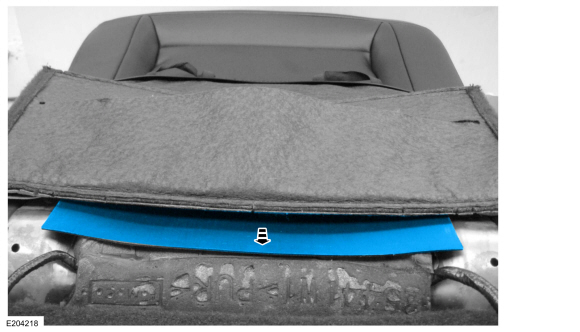

Remove the backrest cover insert.
-
NOTICE:
Use care when separating the backrest trim cover
from the hook-and-loop strips or the hook-and-loop strips may be torn
from the backrest foam.
Partially invert the backrest cover enough to access the hog rings.
-
Release the hook-and-loop strips.
-
Invert the backrest cover.
-

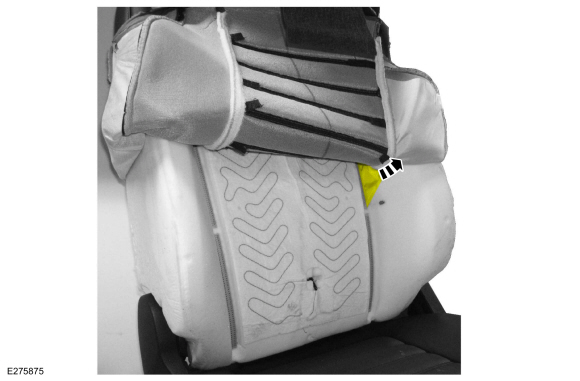

Remove the pin-type retainers from the deployment chute wrap and begin feeding it through the backrest foam.
-
Pull the deployment chute wrap out of the backrest foam.
-
Lift the backrest cover and release the J-clips from the lumbar wires and backrest frame.
-

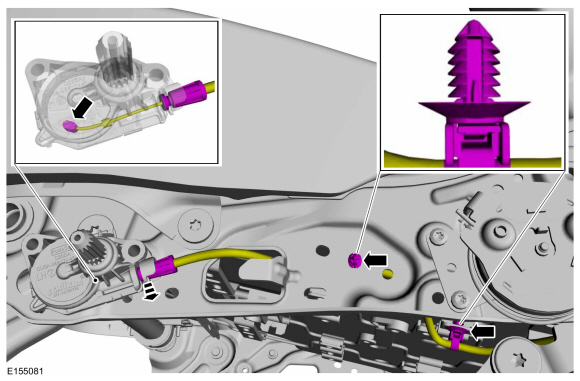

Position the manual lumbar assembly cable away from the seat track.
-
Disconnect the cable from the manual lumbar actuator.
-
Detach the cable retainers from the seat track.
-

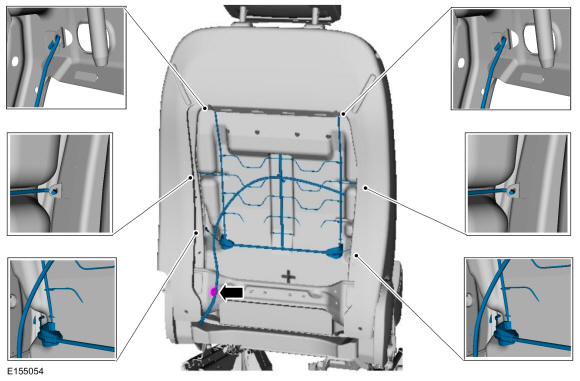

Remove the lumbar assembly.
-
Release the lumbar assembly cable retainer.
-
Detach the lumbar assembly J-hooks.
Installation
-
To install, reverse the removal procedure.
