Ford Fusion: Exterior Lighting / Hazard Flasher Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Hazard Flasher Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

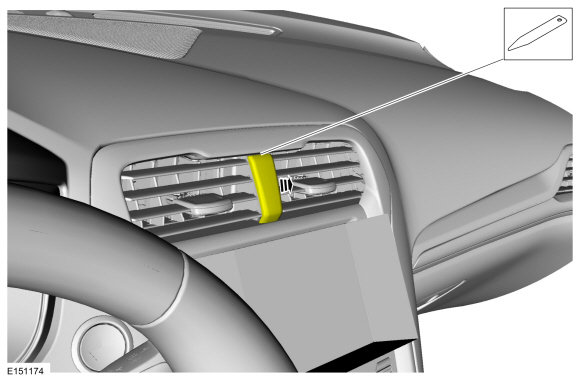

  1. Using a non-marring tool release and position the hazard flasher switch.
Ford Fusion. Hazard Flasher Switch. Removal and Installation

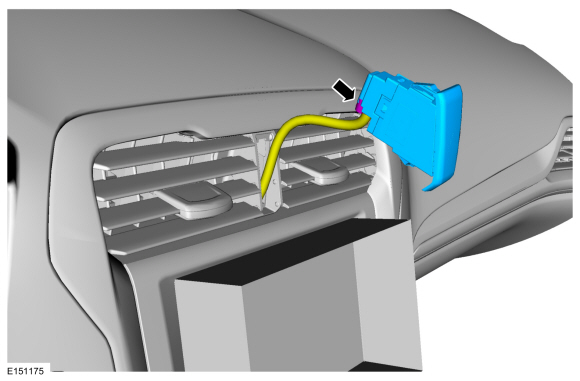

  1. Disconnect the electrical connector and remove the hazard flasher switch.
Ford Fusion. Hazard Flasher Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
