Ford Fusion: Body Closures / Luggage Compartment Lid Hinge. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Luggage Compartment Lid Hinge. Removal and Installation

Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Remove the luggage compartment lid.
    Refer to: Luggage Compartment Lid (501-03) .
  1. Remove the parcel shelf trim.
    Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).

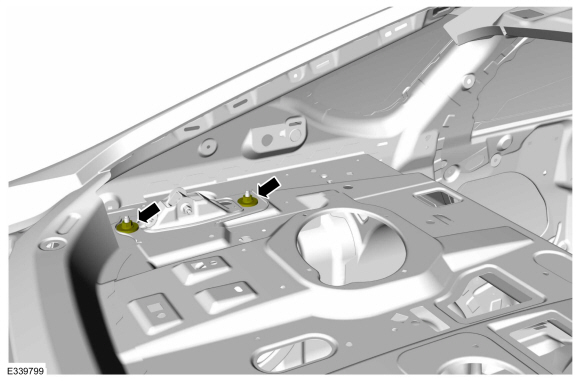

  1. Loosen but do not remove the hinge fasteners.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation

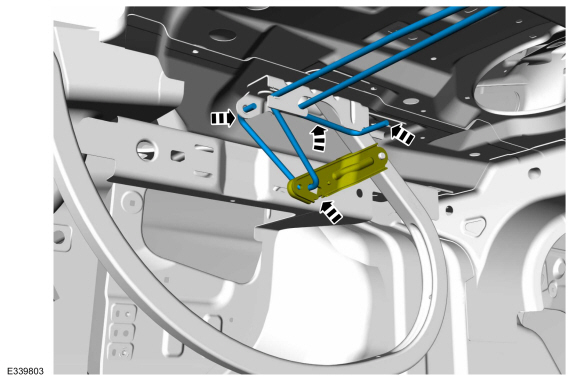

  1. Remove the luggage compartment lid torsion springs.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation
  1. Remove the fasteners.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation

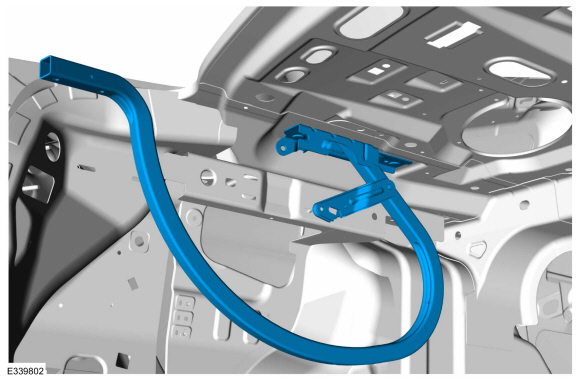

  1. Remove the luggage compartment lid hinge.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation

Installation

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Position the luggage compartment lid hinge in the vehicle.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation

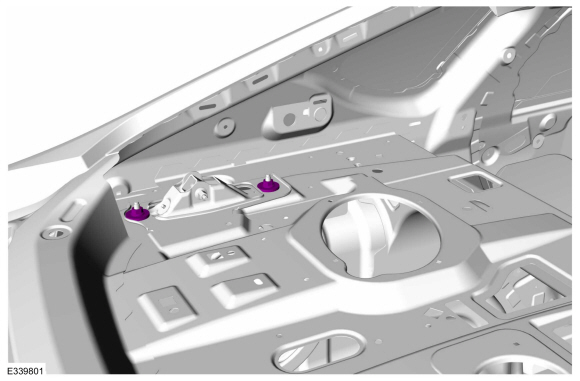

  1. Loosely install the fasteners.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation

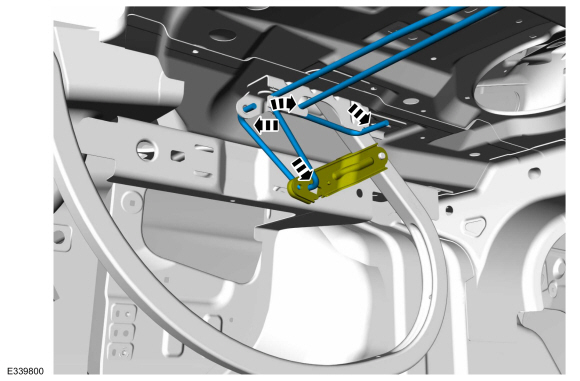

  1. Install the luggage compartment lid torsion springs.
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation
  1. Tighten the fasteners.
    Torque: 16 lb.ft (22 Nm)
Ford Fusion. Luggage Compartment Lid Hinge. Removal and Installation
  1. Install the parcel shelf trim.
    Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Install and align the luggage compartment lid.
    Refer to: Luggage Compartment Lid (501-03) .
    Refer to: Luggage Compartment Lid Alignment (501-03 Body Closures, General Procedures).
