Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Powertrain Control Module (PCM). Removal and Installation
Special Tool(s) /
General Equipment
| Ford Diagnostic Equipment |
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
Use the General Equipment: Ford Diagnostic Equipment
-

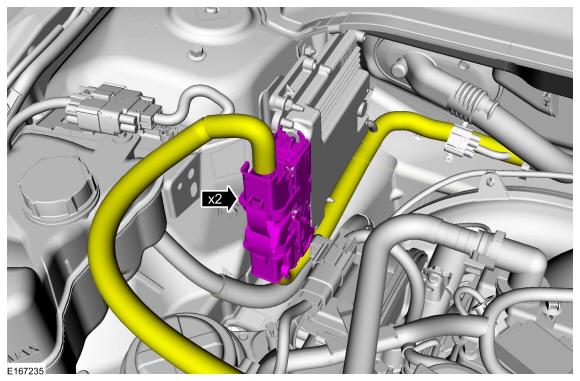

Disconnect the PCM electrical connectors.
-

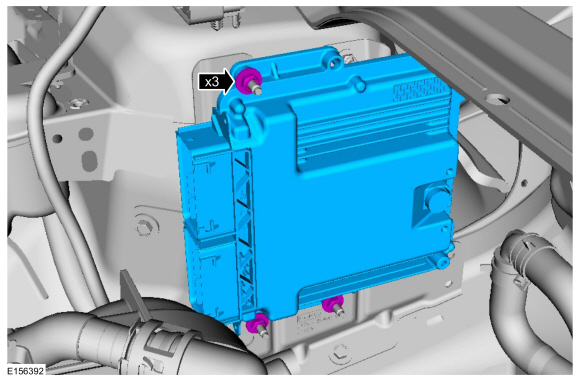

Remove the bolts and the PCM.
Torque:
89 lb.in (10 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Upload the module information from the diagnostic tool using the Programmable Modules Installation routine.
Use the General Equipment: Ford Diagnostic Equipment
-
NOTE:
The step is only necessary when installing a new component.
-
Carry out the Parameter Reset procedure.
-
Vehicles without keyless entry and push button start.
Refer to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS), General Procedures).
-
Vehicles with keyless entry and push button start.
Refer to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS), General Procedures).
-
Using the scan tool, perform the Misfire Monitor Neutral
Profile Correction procedure, following the on-screen instructions.
