Ford Fusion: Parking Aid / Rear Parking Aid Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid / Rear Parking Aid Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

    • Disconnect the rear parking aid sensor harness from the rear bumper cover reinforcement.

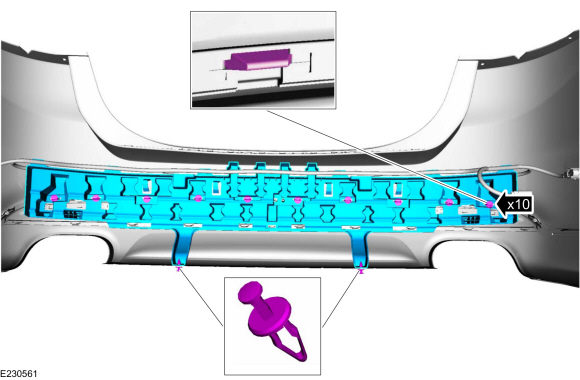

    • Remove the retainers, release the tabs and remove the rear bumper cover reinforcement.
Ford Fusion. Rear Parking Aid Sensor. Removal and Installation

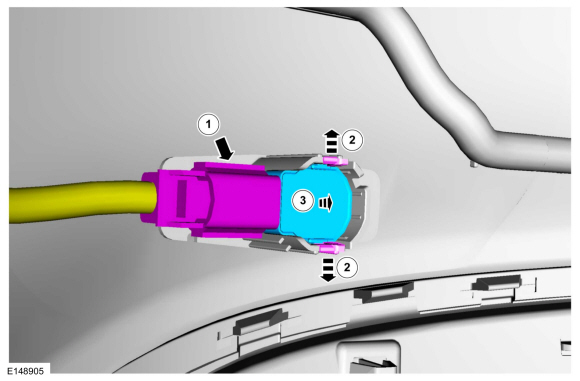

  1. Remove the rear parking aid sensor.
    1. Disconnect the rear parking aid sensor electrical connector.
    1. Release the tabs.
    1. Remove the rear parking aid sensor from the bracket.
Ford Fusion. Rear Parking Aid Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Carry out the azimuth and elevation system checks.
    Refer to: Azimuth System Check (413-13A Parking Aid, General Procedures).
    Refer to: Elevation System Check (413-13A Parking Aid, General Procedures).
