Ford Fusion: Vehicle Dynamic Suspension / Rear Suspension Height Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Suspension / Vehicle Dynamic Suspension / Rear Suspension Height Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

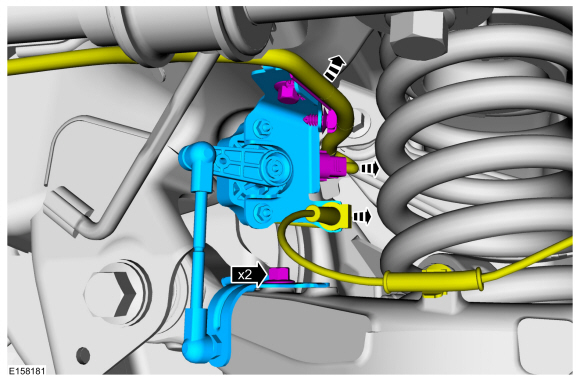

  1. NOTE: RH height sensor assembly shown, LH similar.


    • Disconnect the rear suspension height sensor electrical connector.
    • Remove the rear suspension height sensor arm bracket-to-lower arm bolt.
      Torque: 177 lb.in (20 Nm)
    • Remove the rear suspension height sensor bracket bolt and remove the sensor.
      Torque: 177 lb.in (20 Nm)
Ford Fusion. Rear Suspension Height Sensor. Removal and Installation

Installation

  1. NOTE: The RH and LH height sensor assemblies cannot be used on opposite sides of the vehicle.

    To install, reverse the removal procedure.
  1. Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.

    Front Suspension Height Sensor. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...

    Vehicle Dynamics Control Module (VDM). Removal and Installation

    Removal NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result. NOTE: Removal steps in this procedure may contain installation details...
