Ford Fusion: Refueling / Refueling System Overview

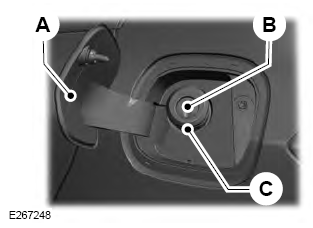

- Fuel filler door.
- Fuel tank filler valve.
- Fuel tank filler pipe.
Your vehicle does not have a fuel tank filler
cap.

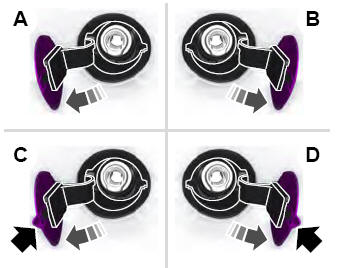

- Left-hand side. To open the fuel
filler door, press the center rear
edge of the fuel filler door and
then release.
- Right-hand side. To open the
fuel filler door, press the center
rear edge of the fuel filler door
and then release.
- Left-hand side. Pull the rear of
the fuel filler door to open it.
- Right-hand side. Pull the rear of
the fuel filler door to open it.
WARNING: When refueling always
shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling...
Other information:
Removal
NOTE:
SODL is shown, SODR is similar.
NOTE:
If installing a new SODL or SODR,
it is necessary to upload the module configuration information to the
scan tool prior to removing the module. This information must be
downloaded into the new SODL or SODR after installation...
System Operation
System Diagram
Item
Description
1
VDM
2
LH front valve solenoid
3
PSCM
4
PCM
5
ABS module
6
LH front height sensor
7
RH front height sensor
8
LH rear height sensor
9
RH rear height sensor
10
BCM
11
RH front valve solenoid
12
LH rear valve solenoid
13
R..
