Ford Fusion: Supplemental Restraint System / Seat Position Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Supplemental Restraint System / Seat Position Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH seat shown, LH seat similar.

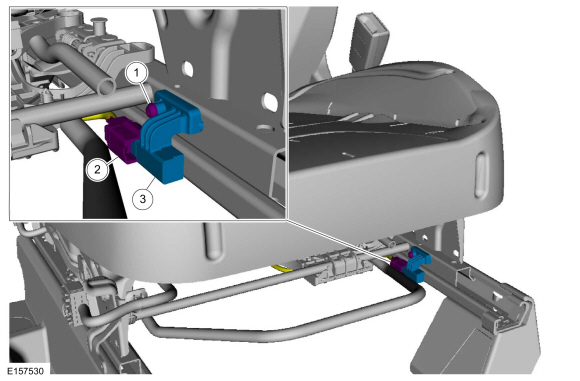

1. Remove the screw.
  Torque: 8 lb.in (0.9 Nm)
1. Disconnect the electrical connector.
1. Remove the seat position sensor.

Installation

To install, reverse the removal procedure.
