Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Torque Converter Seal. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Torque Converter Seal. Removal and Installation 307-003 (T57L-500-B)
Holding Fixture, Transmission
Ford Fusion. Torque Converter Seal. Removal and Installation 307-091
Handle, Torque Converter
TKIT-2009TC-F
Ford Fusion. Torque Converter Seal. Removal and Installation 307-566
Retainer, Torque Converter
TKIT-2006C-FFMFLM
TKIT-2006C-LM
TKIT-2006C-ROW
Ford Fusion. Torque Converter Seal. Removal and Installation 307-625
Fixture, Bench Mounting
TKIT-2008ET-FLM
TKIT-2008ET-ROW
Ford Fusion. Torque Converter Seal. Removal and Installation 307-627
Installer, Converter Seal
TKIT-2008ET-FLM
TKIT-2008ET-ROW
Puller

Removal

  1. Remove the transmission.
  1. Install the special tool.

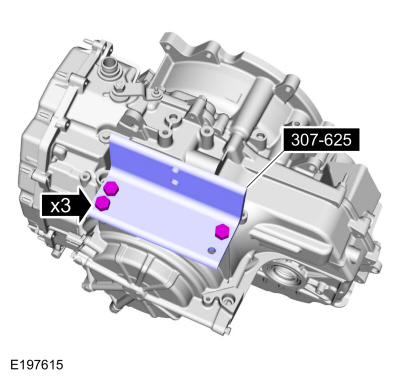

    Use Special Service Tool: 307-625  Fixture, Bench Mounting.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. Mount the transmission to the bench-mounted holding fixture.

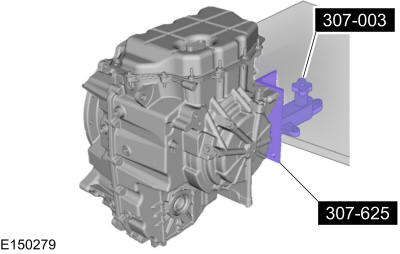

    Use Special Service Tool: 307-003 (T57L-500-B)  Holding Fixture, Transmission. , 307-625  Fixture, Bench Mounting.
Ford Fusion. Torque Converter Seal. Removal and Installation

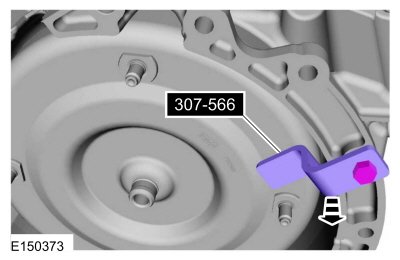

  1. Remove the special tool.
    Use Special Service Tool: 307-566  Retainer, Torque Converter.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. NOTICE: The torque converter is heavy. Be careful not to drop it or damage will result.

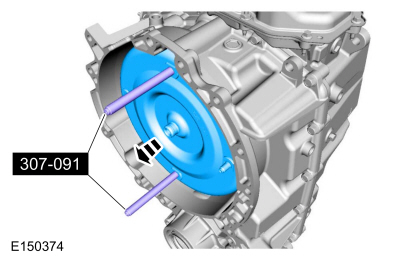

    Using the special tools, remove the torque converter from the transmission.
    Use Special Service Tool: 307-091  Handle, Torque Converter.
Ford Fusion. Torque Converter Seal. Removal and Installation

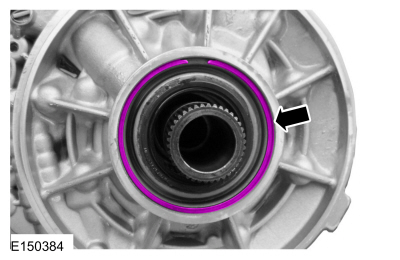

  1. Remove the torque converter hub seal snap ring.
Ford Fusion. Torque Converter Seal. Removal and Installation

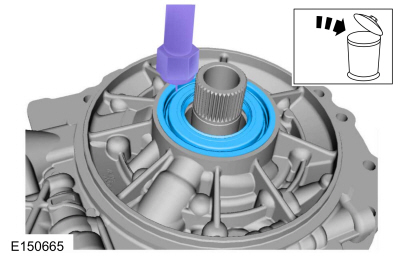

  1. Using a dent puller, remove and discard the torque converter hub seal.
    Use the General Equipment: Puller
Ford Fusion. Torque Converter Seal. Removal and Installation

Installation

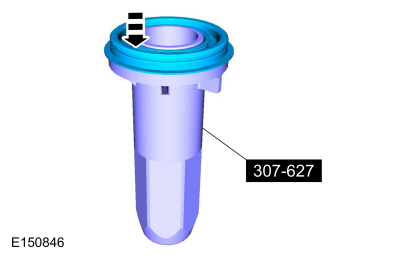

  1. Install a new torque converter hub seal on the special tool.
    Use Special Service Tool: 307-627  Installer, Converter Seal.
Ford Fusion. Torque Converter Seal. Removal and Installation

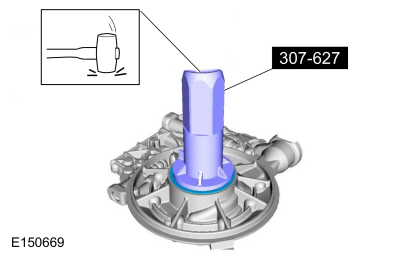

  1. Using the special tool, install a new torque converter hub seal.
    Use Special Service Tool: 307-627  Installer, Converter Seal.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. Install the torque converter hub seal snap ring.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. NOTICE: The torque converter is heavy. Be careful not to drop it or damage will result.

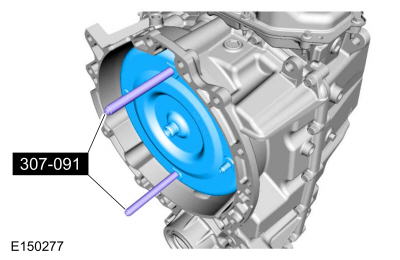

    Using the special tools, install the torque converter.
    Use Special Service Tool: 307-091  Handle, Torque Converter.
Ford Fusion. Torque Converter Seal. Removal and Installation

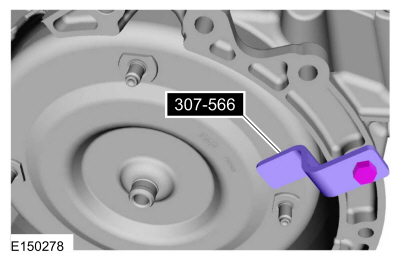

  1. Install the special tool.
    Install Special Service Tool: 307-566  Retainer, Torque Converter.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. Remove the transmission from the bench-mounted holding fixture.
    Use Special Service Tool: 307-003 (T57L-500-B)  Holding Fixture, Transmission. , 307-625  Fixture, Bench Mounting.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. Remove the special tool.
    Use Special Service Tool: 307-625  Fixture, Bench Mounting.
Ford Fusion. Torque Converter Seal. Removal and Installation
  1. Install the transmission.
