Ford Fusion: Wipers and Washers / Windshield Wipers

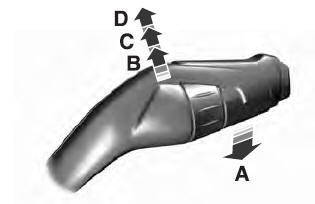

Ford Fusion. Windshield Wipers Push the lever up or down to operate the windshield wiper.

Ford Fusion. Windshield Wipers

  1. Single wipe.
  2. Intermittent wipe.
  3. Normal wipe.
  4. High speed wipe.

Note: Fully defrost the windshield before you switch the windshield wipers on.

Note: Make sure that you switch the windshield wipers off before entering a car wash.

Note: If streaks or smears appear on the windshield, clean the windshield and the wiper blades. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washers before wiping a dry windshield.

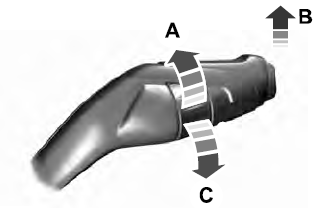

Intermittent Wipe

Ford Fusion. Windshield Wipers

  1. Shortest wipe interval.
  2. Intermittent wipe.
  3. Longest wipe interval.

Use the rotary control to adjust the intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes decreases.

    Wipers and Washers

    ..

    Autowipers (IF EQUIPPED)

    Note: Fully defrost the windshield before you switch the windshield wipers on. Note: Make sure that you switch the windshield wipers off before entering a car wash...
