Removal

NOTE: RH side shown, LH side similar.

  1. Release the retainers and remove the instrument panel side trim panel.
Ford Fusion. A-Pillar Trim Panel. Removal and Installation
    1. Position aside the front door weatherstrip.
    1. Release the lower retainers.
    1. Release the upper retainers and remove the upper cowl side trim panel.
Ford Fusion. A-Pillar Trim Panel. Removal and Installation

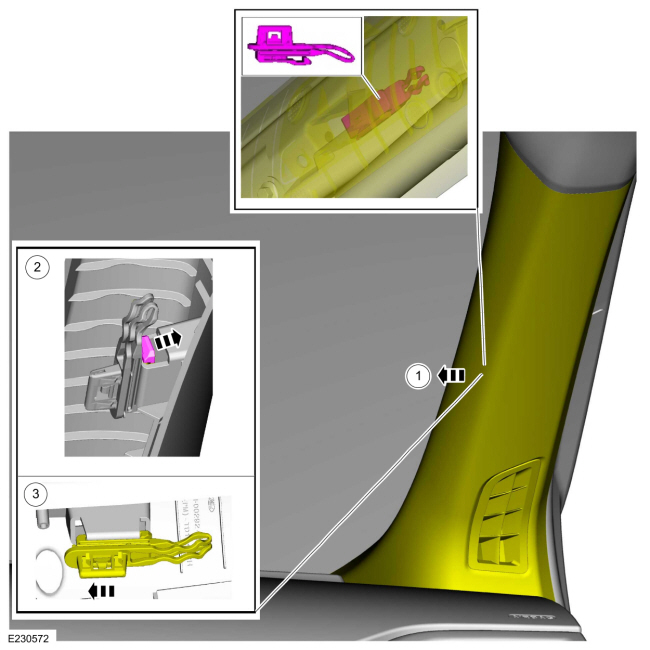

    1. Disconnect tether clip from bracket.
    1. Rotate tether clip to align with opening.
    1. Disconnect tether clip from trim panel.
Ford Fusion. A-Pillar Trim Panel. Removal and Installation

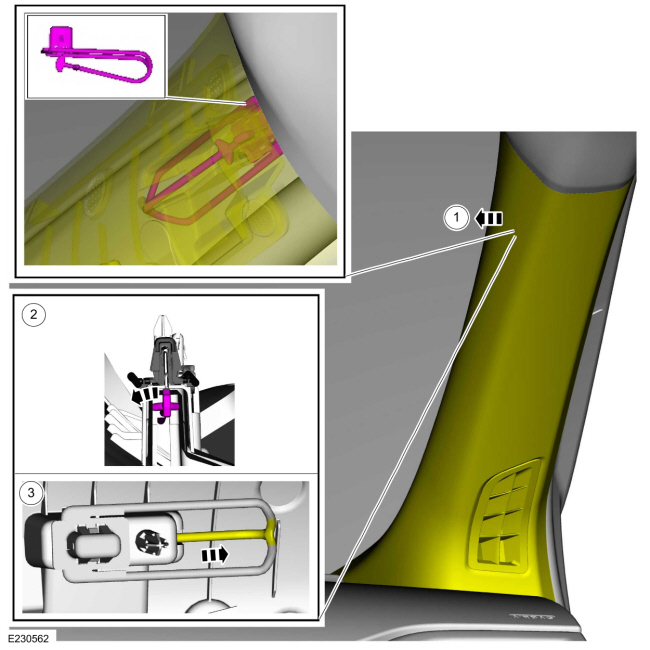

    1. Disconnect tether clip from bracket.
    1. Release the tether clip tab.
    1. Disconnect tether clip from trim panel.
Ford Fusion. A-Pillar Trim Panel. Removal and Installation

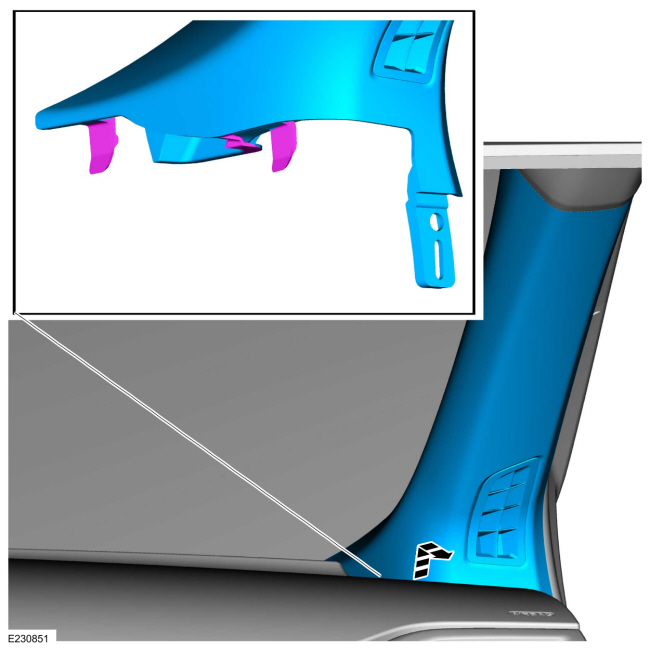

  1. Release the tabs and remove the A-pillar trim panel.
Ford Fusion. A-Pillar Trim Panel. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
