Ford Fusion: Front End Body Panels / Active Grille Shutter. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front End Body Panels / Active Grille Shutter. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Disassembly and Assembly).

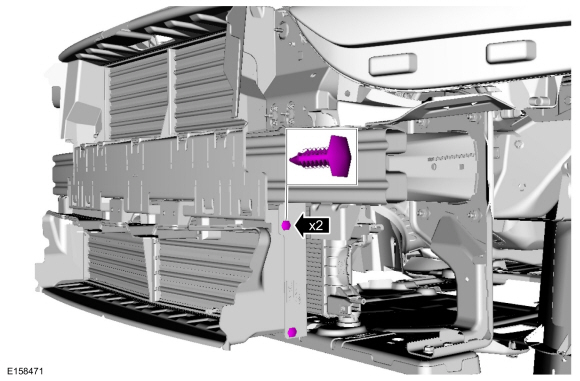

  1. On both sides.
    Remove the pin-type retainers.
Ford Fusion. Active Grille Shutter. Removal and Installation

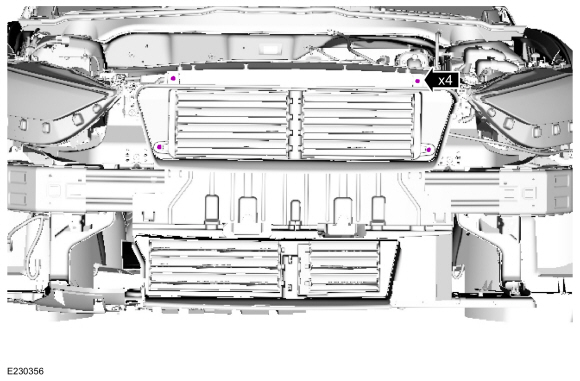

  1. Remove the bolts.
    Torque: 53 lb.in (6 Nm)
Ford Fusion. Active Grille Shutter. Removal and Installation

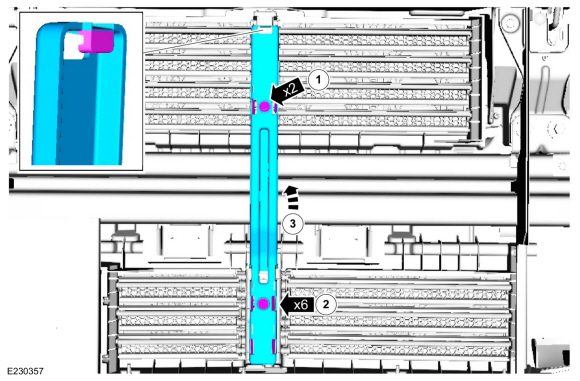

    1. Remove the bolts.
    1. Release the retaining tabs.
    1. Lift up and remove the bridge link.
Ford Fusion. Active Grille Shutter. Removal and Installation

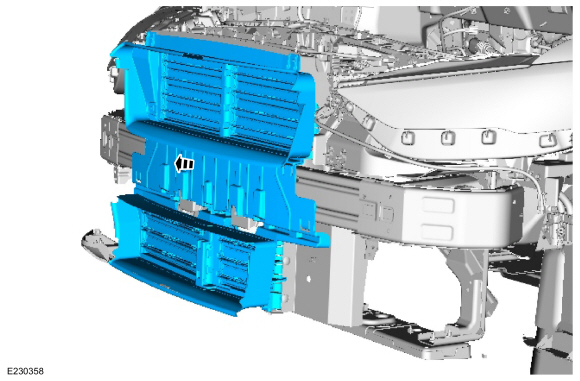

  1. Remove the active grille shutter.
Ford Fusion. Active Grille Shutter. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
