Ford Fusion: Climate Control System - General Information / Air Distribution Door Actuator. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Air Distribution Door Actuator. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the steering column.
    Refer to: Steering Column (211-04 Steering Column, Removal and Installation).
  1. If equipped.

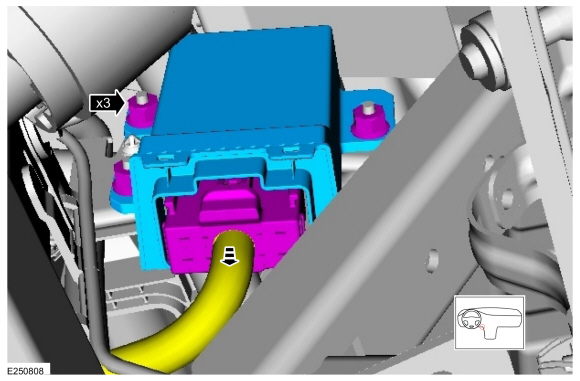

    Disconnect the electrical connector, remove the nuts and the HSWM.
    Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Air Distribution Door Actuator. Removal and Installation

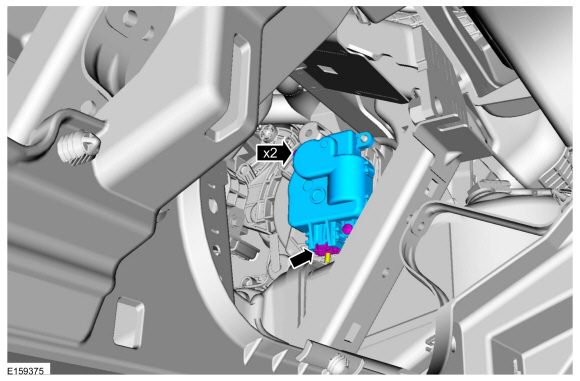

  1. Disconnect the electrical connector, remove the retainers and the air distribution door actuator.
Ford Fusion. Air Distribution Door Actuator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
