Ford Fusion: Climate Control System - General Information / Blower Motor. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Blower Motor. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
-

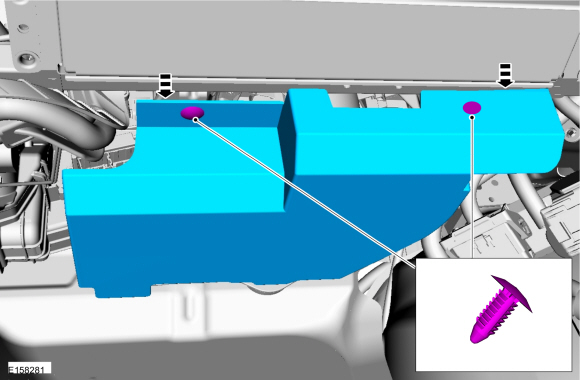

Remove the push pins and the RH insulation panel.
 |
-

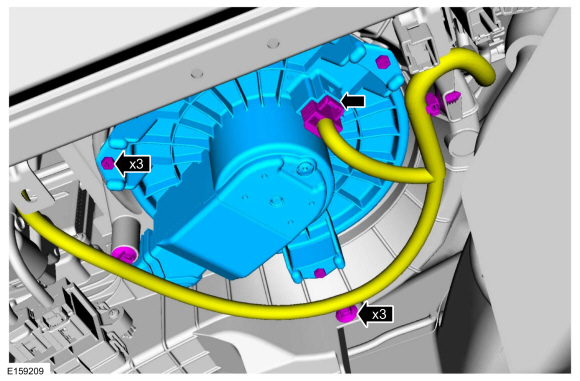

Disconnect the electrical connector, detach the wiring
harness retainers and position aside the harness. Remove the retainers
and the blower motor.
 |
Installation
-
To install, reverse the removal procedure.
