Ford Fusion: Climate Control System - General Information / Blower Motor Speed Control. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Blower Motor Speed Control. Removal and Installation

Removal

NOTE: Remove steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).

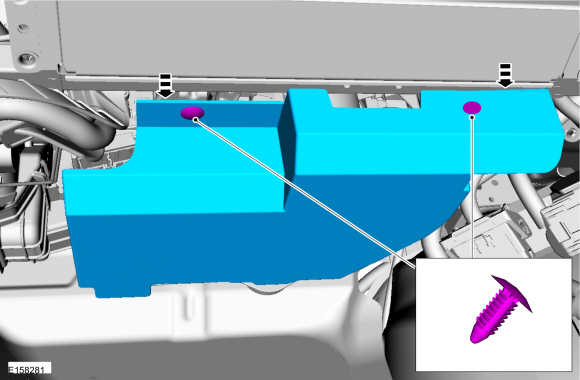

Remove the push pins and the RH insulation panel.

Ford Fusion. Blower Motor Speed Control. Removal and Installation

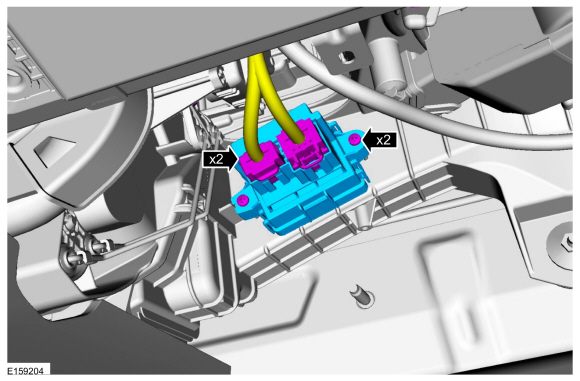

Disconnect the electrical connectors, remove the retainers and the blower motor speed control.

Installation

To install, reverse the removal procedure.
