Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Camshaft Position (CMP) Sensor LH. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the engine appearance cover.
Ford Fusion. Camshaft Position (CMP) Sensor LH. Removal and Installation

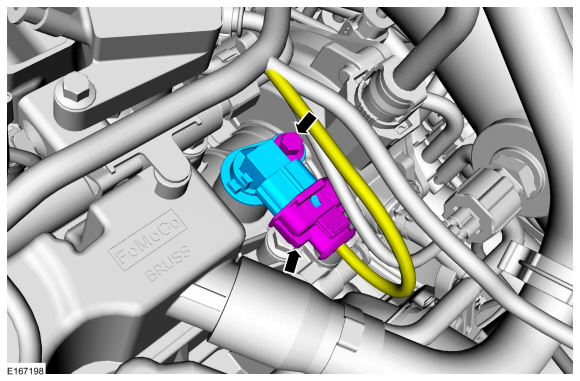

  1. Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Camshaft Position (CMP) Sensor LH. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
