Ford Fusion: Cruise Control / Cruise Control Radar Alignment. General Procedures
Activation
Vertical Alignment
NOTE:
In order to align the CCM,
the front bumper cover must be removed to access the sensor and the
vehicle must be in a wheel alignment bay station so that the vehicle is
level.
NOTE:
Damage to the CCM bracket may affect correct alignment. When aligning the CCM, inspect the CCM bracket for damage and repair as necessary before carrying out the alignment procedure.
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers)
.
-
Place the vehicle on a wheel alignment bay station.
-

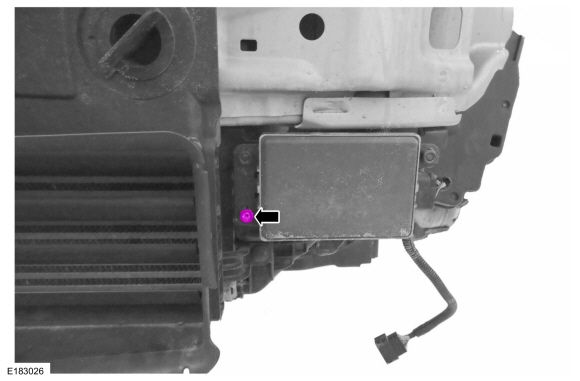

Locate the CCM alignment screw.
-

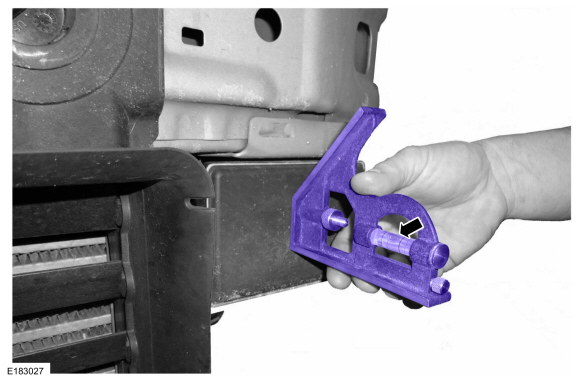

Place a combination square level on the face of the CCM and check the alignment.
-

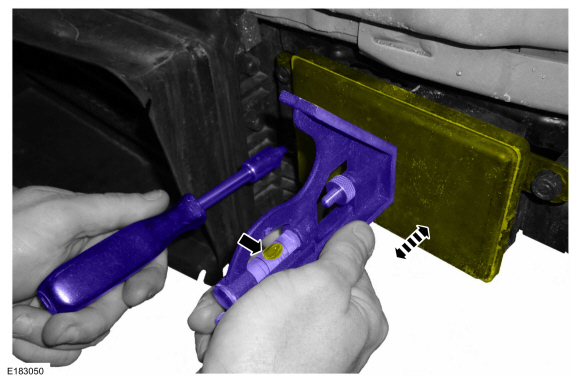

Keeping the combination square level on the face of the CCM, adjust the pitch by using an E20 Torx® bit to adjust the screw until the CCM is vertical and level.
-
NOTE:
Prior to installing the front bumper cover,
clean and remove any debris on the front or back of the cover.
Install the front bumper cover.
Horizontal Alignment
NOTE:
The horizontal alignment for the CCM is a software calibration. No manual adjustment is needed for this procedure. The scan tool calibrates the CCM through the CCM procedure in programmable parameters.
-
NOTICE:
The vehicle's engine must be running during the
horizontal alignment procedure. Failure to leave the engine running
throughout the entire procedure results in the cancellation of the
alignment procedure and the system remains non-functional.
Start the engine.
-
Follow the scan tool on-screen instructions to
carry-out the CCM calibration procedure located in IDS under Toolbox
> Electrical > Cruise Control > CCM Calibration.
