Ford Fusion: Parking Aid - Vehicles With: Active Park Assist / Elevation System Check. General Procedures

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Elevation System Check. General Procedures

Check

Turn the ignition ON, engine OFF.

Set the parking brake.

Place the gearshift in REVERSE (R) for rear parking aid sensors.

Place the gearshift in DRIVE (D) for front parking aid sensors.

Using a diagnostic scan tool, monitor the parking aid sensor distance Parameter Identifications (PIDs) to verify no objects are detected.

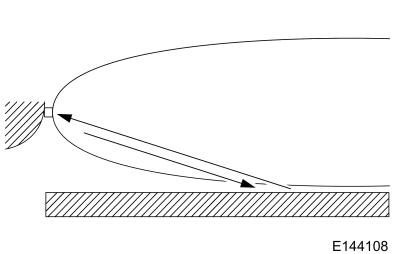

If the audible warning is heard or if the Parameter Identifications (PIDs) indicate an object is detected, check to make sure the bumper is correctly installed and is not tilted downward so the sensor is pointing at the ground. Refer to Diagnosis and Testing.

Azimuth System Check. General Procedures

Check NOTE: Car shown, trucks are similar. Turn the ignition ON, engine OFF. Set the parking brake on. For automatic transmission place the selector lever in DRIVE (D)...

Active Park Assist Switch. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Open the floor console stowage bin lid. On both sides...
