Ford Fusion: Parking Aid - Vehicles With: Active Park Assist / Azimuth System Check. General Procedures

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Azimuth System Check. General Procedures

Check

  1. NOTE: Car shown, trucks are similar.

    Turn the ignition ON, engine OFF.
Ford Fusion. Azimuth System Check. General Procedures
  1. Set the parking brake on.
  1. For automatic transmission place the selector lever in DRIVE (D). For manual transmission place the gearshift lever in FIRST GEAR.

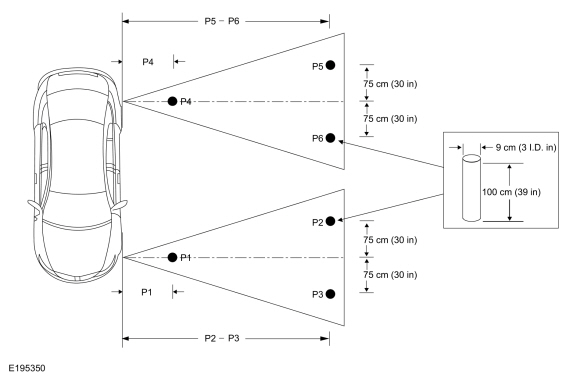

  1. Place the test objects in position shown in the diagram. Refer to specifications in this section.
  1. Monitor the suspect active park assist sensor Parameter Identifications (PIDs) to verify the module detects the objects when placed within the specified locations and record the distances.
  1. Confirm the recorded distances are within the specification ranges.
  1. If the active park assist system does not detect the objects, refer to diagnosis and testing in this section.

    Parking Aid. Diagnosis and Testing

    DTC Chart(s) Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Elevation System Check. General Procedures

    Check Turn the ignition ON, engine OFF. Set the parking brake. Place the gearshift in REVERSE (R) for rear parking aid sensors...
