Ford Fusion: Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Engine Component View. Description and Operation
Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Engine Component View. Description and Operation

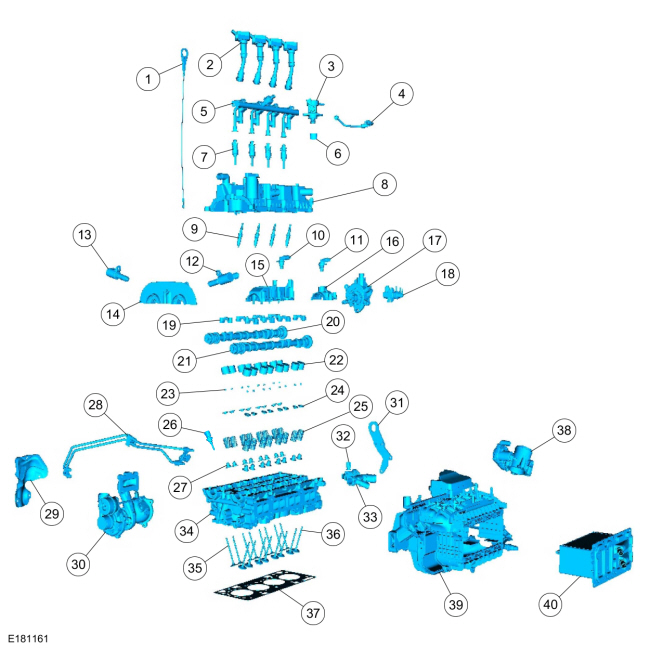

Upper Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 67506750 | Oil level indicator |
| 2 | 12A36612A366 | Ignition coil on plug (4 required) |
| 3 | 9D3769D376 | Fuel injection pump |
| 4 | 9D3549D354 | Fuel injection pump-to-fuel rail fuel supply tube |
| 5 | 9H4879H487 | Fuel rail |
| 6 | 6C2876C287 | Fuel injection pump tappet |
| 7 | 9F5939F593 | Fuel injector (4 required) |
| 8 | 6M2936M293 | Cover assembly |
| 9 | 1240512405 | Spark plug (4 required) |
| 10 | 12K07312K073 | Exhaust camshaft position (CMP) sensor |
| 11 | 12K07312K073 | Intake camshaft position (CMP) sensor |
| 12 | 6L7136L713 | Intake variable camshaft timing (VCT) unit oil control solenoid |
| 13 | 6L7136L713 | Exhaust variable camshaft timing (VCT) unit oil control solenoid |
| 14 | — | Variable camshaft timing (VCT) unit bridge (part of 6049) |
| 15 | 93469346 | Fuel injection pump mounting bracket |
| 16 | — | Vacuum pump mounting bracket (part of 6069) |
| 17 | 2A4512A451 | Vacuum pump assembly |
| 18 | 9F4909F490 | Turbocharger vacuum control solenoid |
| 19 | — | Camshaft cap (8 required) (part of 6049) |
| 20 | 6A2726A272 | Exhaust camshaft |
| 21 | 6A2706A270 | Intake camshaft |
| 22 | 65006500 | Valve tappet (16 required) |
| 23 | 65186518 | Valve collet (16 required) |
| 24 | 65146514 | Valve spring retainer (16 required) |
| 25 | 6A5366A536 | Valve spring (16 required) |
| 26 | 6G0046G004 | Cylinder head temperature (CHT) sensor |
| 27 | 65716571 | Valve seal (16 required) |
| 28 | 9V4549V454 | Turbocharger coolant tubes |
| 29 | 9N4549N454 | Turbocharger heat shield |
| 30 | 6K6826K682 | Turbocharger |
| 31 | 17K07817K078 | Lift eye bracket |
| 32 | 12A64812A648 | Engine coolant temperature (ECT) sensor |
| 33 | 8K5568K556 | Coolant outlet |
| 34 | 60496049 | Cylinder head |
| 35 | 65056505 | Exhaust valve (8 required) |
| 36 | 65076507 | Intake valve (8 required) |
| 37 | 60516051 | Cylinder head gasket |
| 38 | 9F9919F991 | Throttle body |
| 39 | 94249424 | Intake manifold |
| 40 | 9L4409L440 | Charge air cooler |

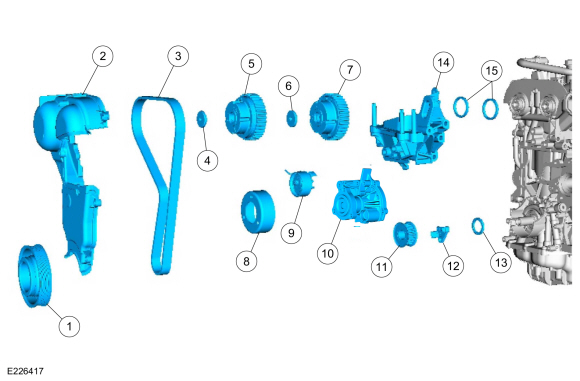

Front Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B3196B319 | Crankshaft pulley |
| 2 | 6P0736P073 | Timing belt cover |
| 3 | 6K2886K288 | Timing belt |
| 4 | W710954W710954 | Exhaust camshaft phaser and sprocket plug and seal |
| 5 | 6C5246C524 | Exhaust variable camshaft timing (VCT) unit |
| 6 | W710954W710954 | Intake camshaft phaser and sprocket plug and seal |
| 7 | 6C5246C524 | Intake variable camshaft timing (VCT) unit |
| 8 | 85098509 | Coolant pump pulley |
| 9 | 6K2546K254 | Timing belt tensioner |
| 10 | 8B5958B595 | Coolant pump |
| 11 | 63066306 | Crankshaft sprocket gear |
| 12 | 6C3156C315 | Crankshaft Position (CKP) sensor |
| 13 | 67006700 | Crankshaft oil seal |
| 14 | 6F0016F001 | Engine mounting bracket assembly |
| 15 | 6K2926K292 | Camshaft oil seals |

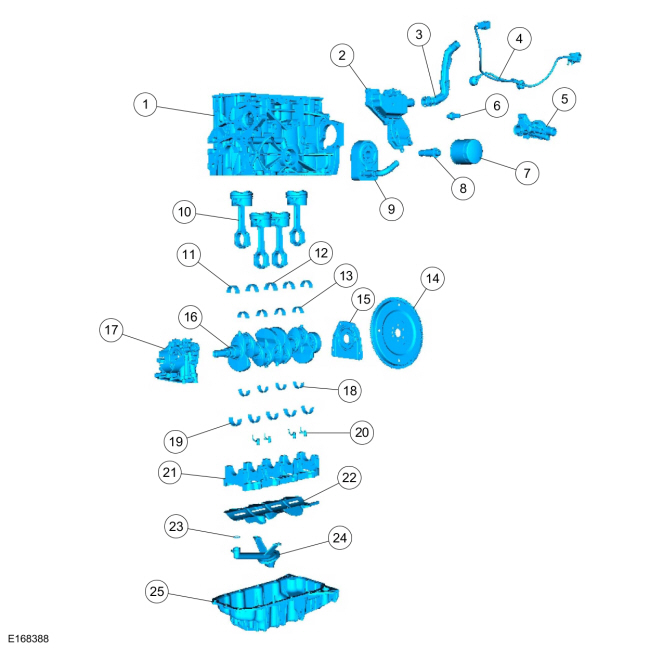

Lower Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | 60106010 | Engine block |
| 2 | 6A7856A785 | Crankcase vent oil separator |
| 3 | 67596759 | Crankcase vent oil separator tube? |
| 4 | 12A69912A699 | Knock sensor (KS) (2 required) |
| 5 | 9K4789K478 | Thermostat housing |
| 6 | 92789278 | Engine oil pressure switch |
| 7 | 67146714 | Oil filter |
| 8 | 6L6266L626 | Oil cooler mounting bolt |
| 9 | 6B8566B856 | Oil cooler |
| 10 | 61006100 | Piston and connecting rod (4 required) |
| 11 | 63336333 | Upper main bearing (4 required) |
| 12 | 63376337 | Upper main bearing |
| 13 | 62116211 | Upper connecting rod bearing (4 required) |
| 14 | 63756375 | Flexplate |
| 15 | 6K3016K301 | Crankshaft rear oil seal with retainer plate |
| 16 | 63036303 | Crankshaft |
| 17 | 66006600 | Oil pump |
| 18 | 62116211 | Lower connecting rod bearing (5 required) |
| 19 | 6A3386A338 | Lower main bearing (4 required) |
| 20 | 6K8686K868 | Piston oil cool valve |
| 21 | 63346334 | Main bearing beam |
| 22 | 6B6606B660 | Windage tray |
| 23 | W7101437W7101437 | Oil pump screen and pickup tube O-ring seal |
| 24 | 6K6216K621 | Oil pump screen and pickup tube |
| 25 | 66756675 | Oil pan |
Engine. Diagnosis and Testing
REFER to: Engine (303-00 Engine System - General Information, Diagnosis and Testing). For basic mechanical concerns or to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for driveability concerns...
