Ford Fusion: Front End Body Panels / Fender Splash Shield. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front End Body Panels / Fender Splash Shield. Removal and Installation

Removal

NOTE: LH (left-hand) shown, RH (right-hand) similar.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A) .
  1. Remove the nuts.

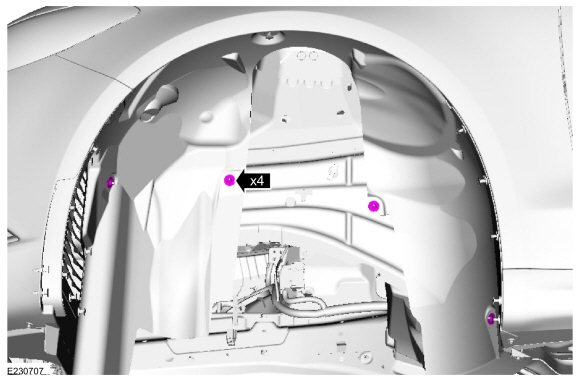

Ford Fusion. Fender Splash Shield. Removal and Installation
  1. Remove the screws.

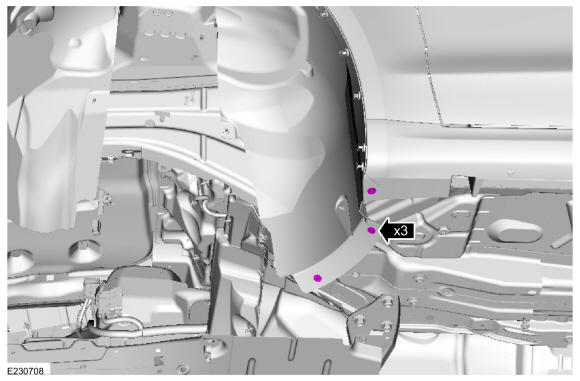

Ford Fusion. Fender Splash Shield. Removal and Installation
  1. Remove the screws.

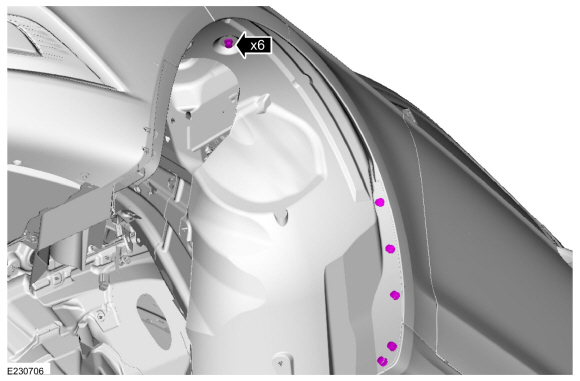

Ford Fusion. Fender Splash Shield. Removal and Installation
  1. Remove the screws.

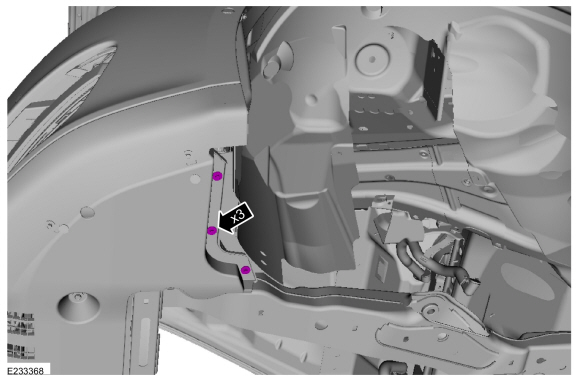

Ford Fusion. Fender Splash Shield. Removal and Installation
  1. Remove the pin-type retainers.

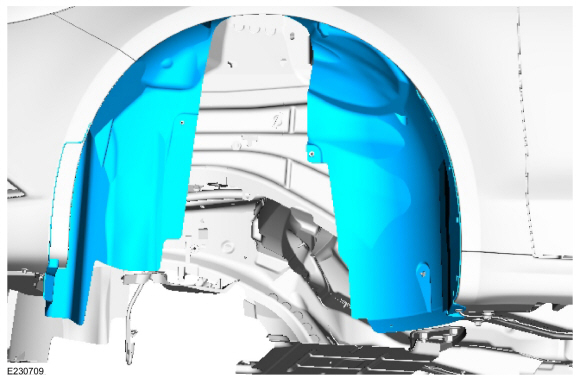

Ford Fusion. Fender Splash Shield. Removal and Installation
  1. Remove the fender splash shield.
Ford Fusion. Fender Splash Shield. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
