Ford Fusion: Glass, Frames and Mechanisms / Front Door Fixed Window Glass. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Front Door Fixed Window Glass. Removal and Installation

Removal

  1. Refer to: Front Door Glass Top Run (501-11 Glass, Frames and Mechanisms, Removal and Installation).

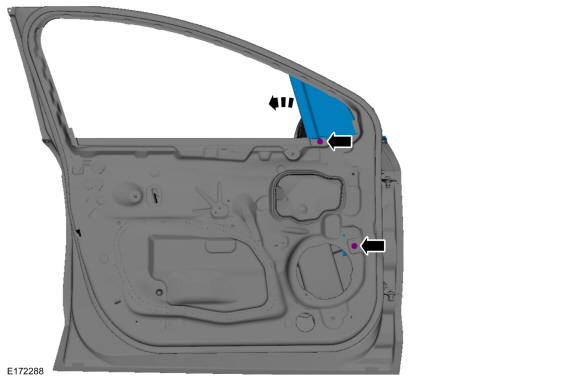

  1. Remove the retainers and front door fixed window glass.
Ford Fusion. Front Door Fixed Window Glass. Removal and Installation
  1. NOTE: This step is only necessary when installing a new component.

    Using a flat bladed screwdriver, gently compress the snap tabs from top to bottom, while applying outward pressure on the division bar cap.
Ford Fusion. Front Door Fixed Window Glass. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Perform the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
