Ford Fusion: Glass, Frames and Mechanisms / Front Door Window Regulator. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Front Door Window Regulator. Removal and Installation

Removal

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the front door speaker.
    Refer to: Front Door Speaker (415-00 Information and Entertainment System - General Information - Vehicles With: Touchscreen Display) .
    Refer to: Front Door Speaker (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).
    Refer to: Front Door Speaker (415-00 Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC) .
  1. Remove the front door watershield.
Ford Fusion. Front Door Window Regulator. Removal and Installation

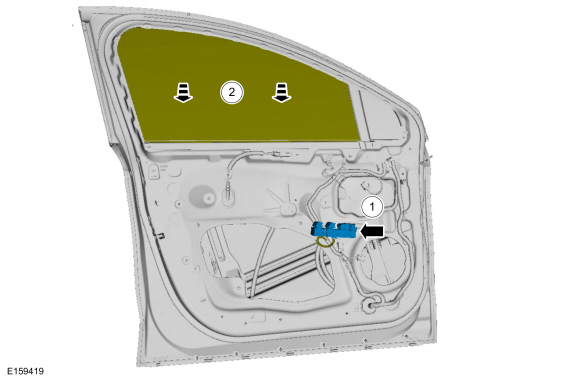

  1. Lower the glass to full down position.
    1. Install the front door window control switch.
    1. Lower the window to access clips.
Ford Fusion. Front Door Window Regulator. Removal and Installation

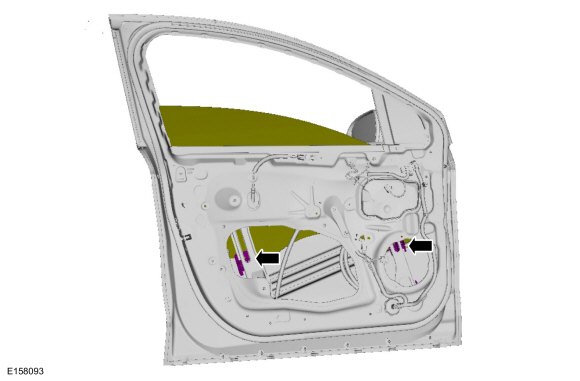

  1. Release the front door window retaining clips.
Ford Fusion. Front Door Window Regulator. Removal and Installation

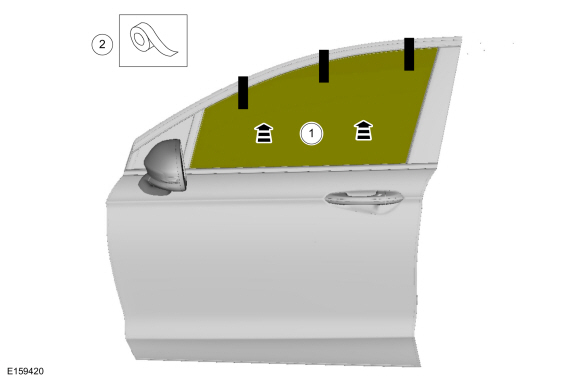

  1. Apply tape to window glass to window door frame.
    1. Raise the window to fully closed position.
    1. Apply tape to window glass to window door frame.
Ford Fusion. Front Door Window Regulator. Removal and Installation

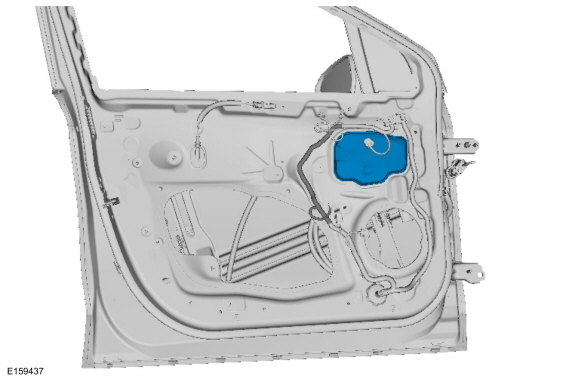

  1. Remove the front door window regulator motor cover.
Ford Fusion. Front Door Window Regulator. Removal and Installation

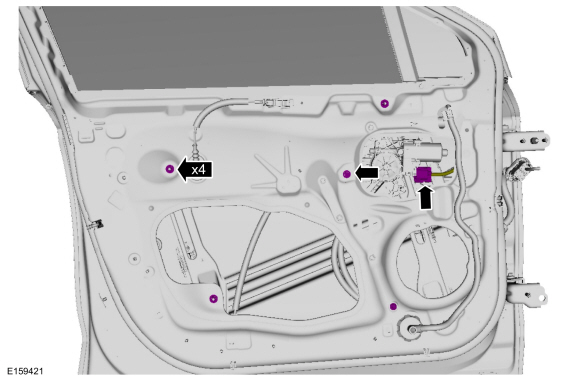

  1. Disconnect the electrical connector and position aside the wiring harness.
    • Remove the nuts.
      Torque: 93 lb.in (10.5 Nm)
    • Disconnect the electrical connector and position aside the wiring harness.
Ford Fusion. Front Door Window Regulator. Removal and Installation

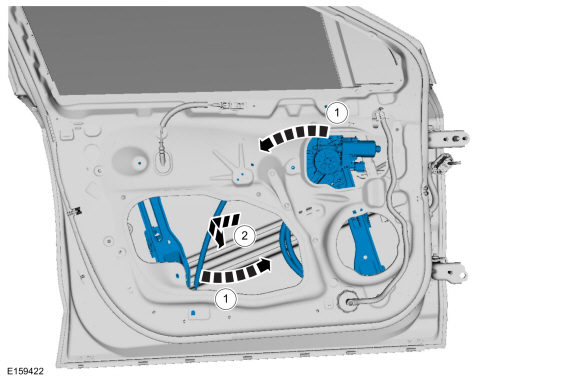

  1. Remove the front door window regulator.
    1. Rotate the front door window glass.
    1. Remove the front door window regulator.
Ford Fusion. Front Door Window Regulator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Carry out the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

    Rear Door Window Glass. Removal and Installation

    Removal NOTE: LH side shown, RH side similar. NOTE: Removal steps in this procedure may contain installation details. Remove the rear door trim panel...

    Front Door Window Regulator Motor. Removal and Installation

    Removal Remove the front door window regulator. Refer to: Front Door Window Regulator (501-11 Glass, Frames and Mechanisms, Removal and Installation)...
