Ford Fusion: Glass, Frames and Mechanisms / Rear Door Window Glass. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the rear door upper moulding.
    Refer to: Rear Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove inner belt moulding.
Ford Fusion. Rear Door Window Glass. Removal and Installation

  1. Remove the rear door upper trim.
    1. Remove the retainers from the rear door upper trim.
    1. Remove the rear door upper trim.
Ford Fusion. Rear Door Window Glass. Removal and Installation

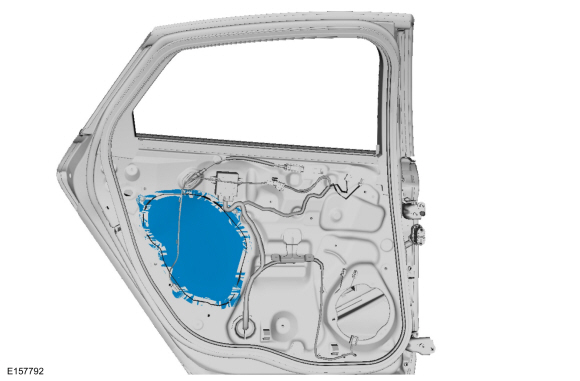

  1. Remove the rear door watershield.
Ford Fusion. Rear Door Window Glass. Removal and Installation

  1. Lower the window glass to the full down position.
    1. Install the rear window control switch.
    1. Position the rear window control switch assembly.
    1. Lower the window glass to the full down position.
Ford Fusion. Rear Door Window Glass. Removal and Installation

  1. Raise the window glass to the full up position.

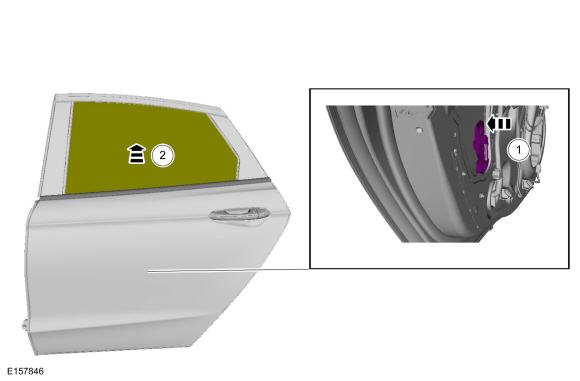

    1. Release the rear door window clip.
    1. Raise the window glass to the full up position.
Ford Fusion. Rear Door Window Glass. Removal and Installation

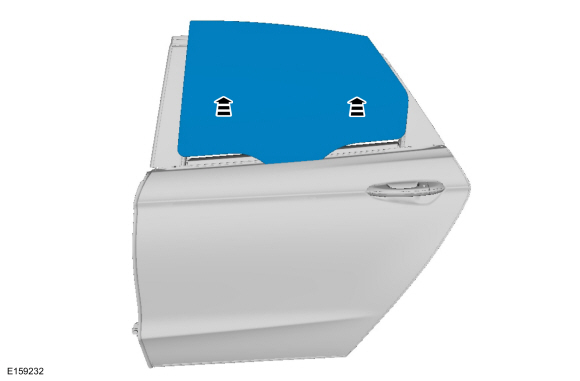

  1. Remove the rear door window glass.
Ford Fusion. Rear Door Window Glass. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Perform the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
