Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Halfshaft Seal RH - AWD. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation 205-153 (T80T-4000-W)
Handle
Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation 307-718
Installer, Axle Seal
TKIT-2013B-FL
TKIT-2013B-ROW
Puller
Punch

Removal

  1. Remove the transfer case assembly.
    Refer to: Power Transfer Unit (308-07B Power Transfer Unit - 6-Speed Automatic Transmission – 6F35, Removal).

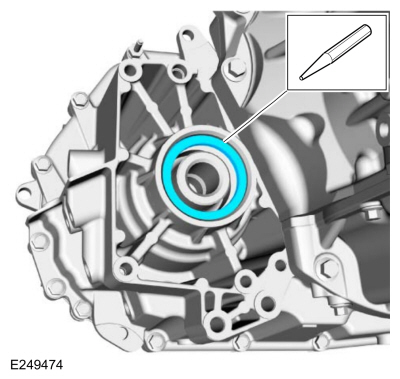

  1. Using a punch, poke a small hole in the halfshaft seal.
    Use the General Equipment: Punch
Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation

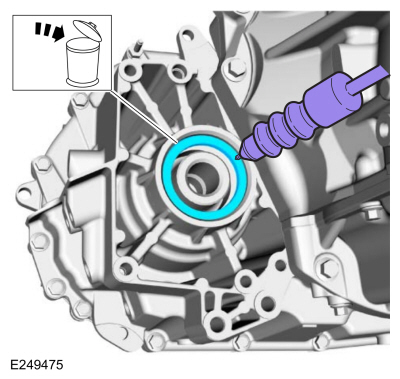

  1. Using a dent puller, remove and discard the halfshaft seal.
    Use the General Equipment: Puller
Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation

Installation

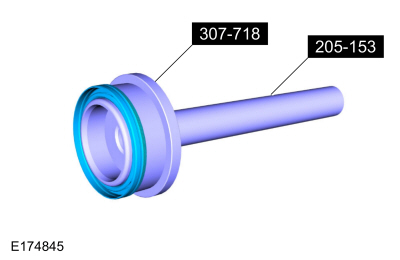

  1. Install a new halfshaft seal on the special tools.
    Use Special Service Tool: 205-153 (T80T-4000-W)  Handle. , 307-718  Installer, Axle Seal.
Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation

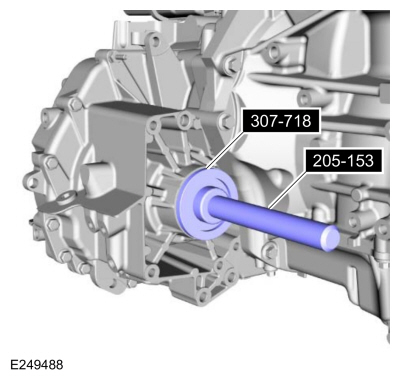

  1. Using the special tools, install the RH halfshaft seal.
    Use Special Service Tool: 205-153 (T80T-4000-W)  Handle. , 307-718  Installer, Axle Seal.
Ford Fusion. Halfshaft Seal RH - AWD. Removal and Installation
  1. Install the transfer case assembly.
    Refer to: Power Transfer Unit (308-07B Power Transfer Unit - 6-Speed Automatic Transmission – 6F35, Installation).
  1. Check the transmission fluid level.
    Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).

    Halfshaft Seal LH. Removal and Installation

    Special Tool(s) / General Equipment 205-153 (T80T-4000-W) Handle 307-626Installer, Differential SealTKIT-2008ET-FLMTKIT-2008ET-ROW Puller Punch Removal Remove the LH halfshaft...

    Halfshaft Seal RH - FWD. Removal and Installation

    Special Tool(s) / General Equipment 205-153 (T80T-4000-W) Handle 307-718Installer, Axle SealTKIT-2013B-FLTKIT-2013B-ROW Puller Punch Removal Remove the RH halfshaft...
