Ford Fusion: Exterior Lighting / Headlamp Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Headlamp Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

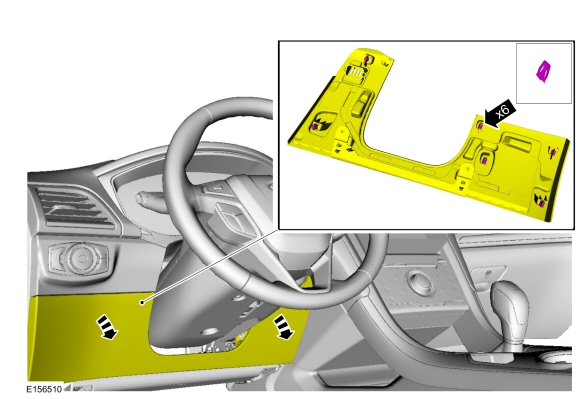

  1. Release the clips and remove the steering column opening trim panel.
Ford Fusion. Headlamp Switch. Removal and Installation

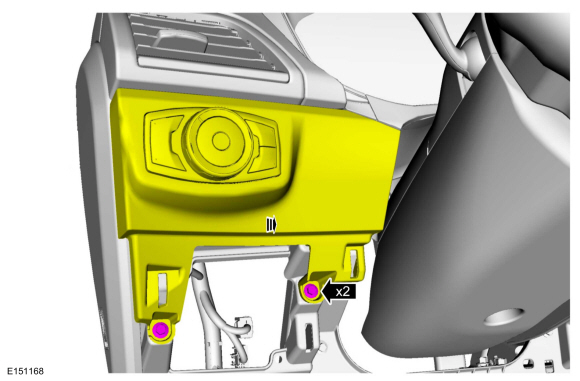

  1. Remove the bolts and position aside the LH instrument panel trim panel.
    Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Headlamp Switch. Removal and Installation

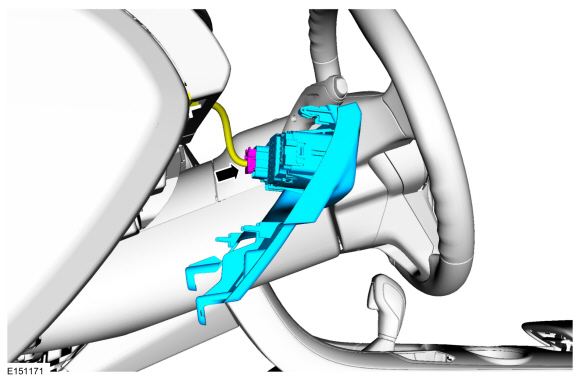

  1. Disconnect the electrical connector.
Ford Fusion. Headlamp Switch. Removal and Installation

  1. Remove the headlamp switch.

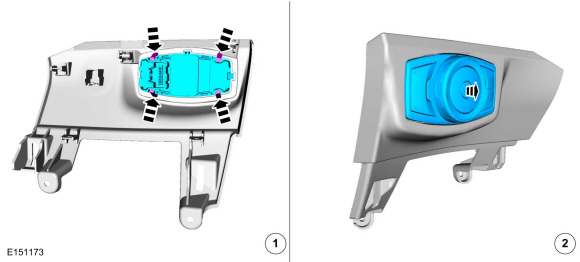

    1. Release the tabs.
    1. Remove the headlamp switch.
Ford Fusion. Headlamp Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
