Ford Fusion: Rear View Mirrors / Interior Rear View Mirror. Removal and Installation
Special Tool(s) /
General Equipment
|
501-025 Installer, Rear View Mirror |
|
501-190 Remover, Auto Dimming Rear View Mirror |
|
501-191 Installer, Rear View Mirror |
|
501-D118A
(501-D118)
Mirror Remover |
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-

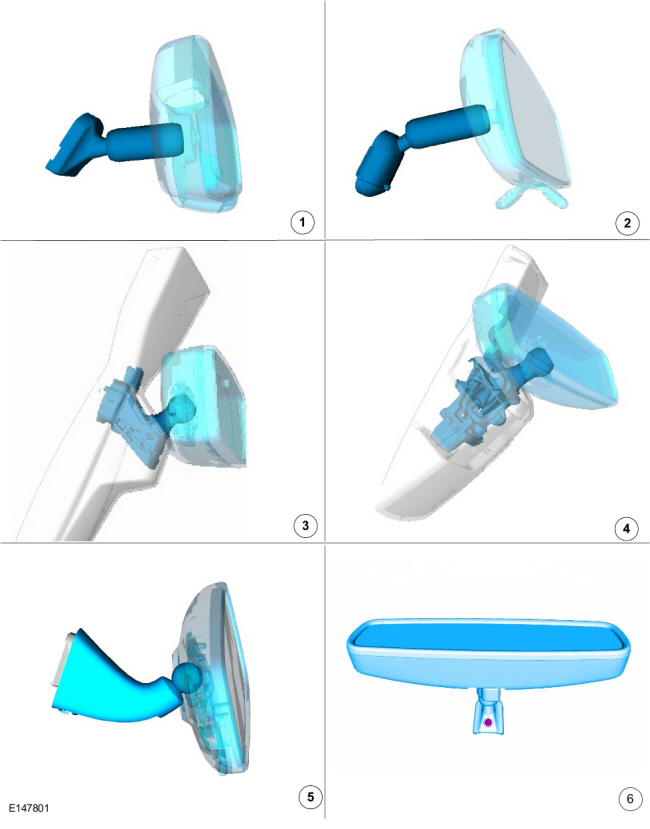

Mirror Types

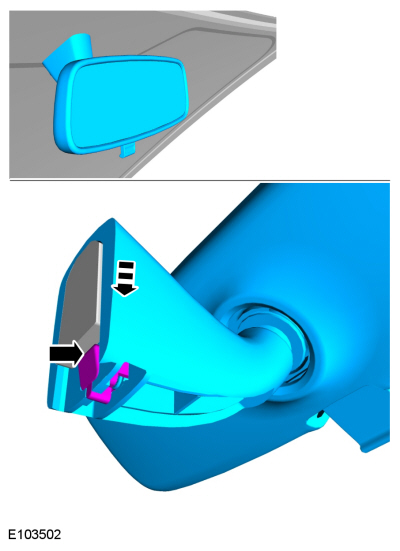

Mirror type 1
-
Click here to view a video version of this procedure.
-

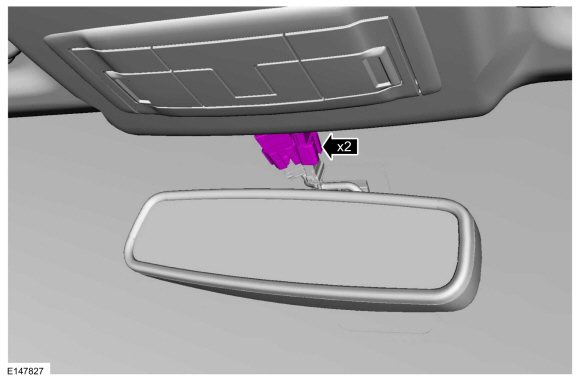

If equipped, disconnect the interior mirror electrical connector.
-

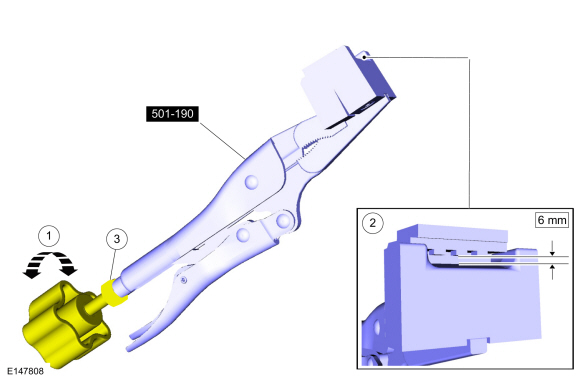

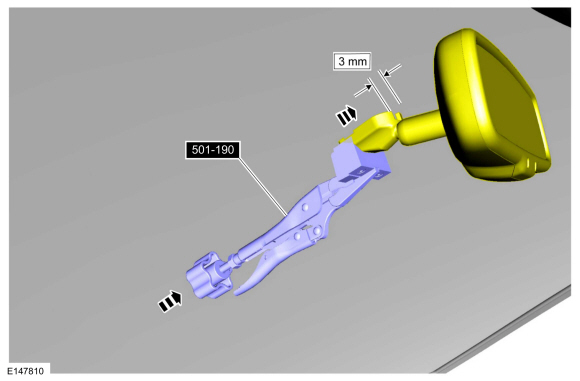

Adjust the jaws on the interior mirror remover.
Use Special Service Tool: 501-190
Remover, Auto Dimming Rear View Mirror.
-
NOTICE:
Make sure the interior mirror remover is fully
inserted into the rear view mirror mount access hole. Otherwise, damage
to the windshield glass may occur.

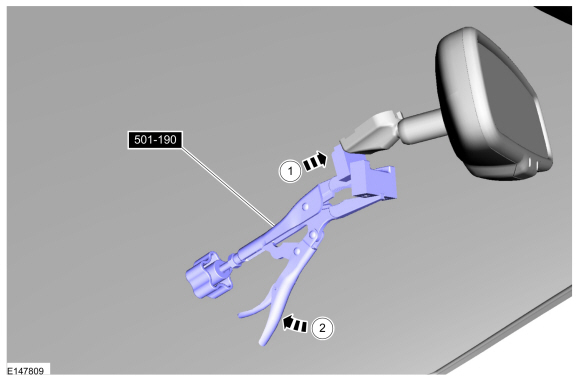

Using the interior mirror remover, release the locking tab.
-
Using a closed hand, bump the adjustment handle of
the interior mirror remover to slide the mirror upward on the mirror
mount.
-
Slide the interior mirror off the interior mirror mount.
Mirror type 2
-
Remove the interior mirror.
-

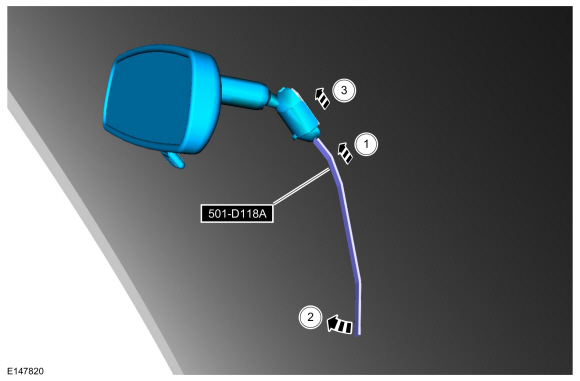

Insert the interior mirror remover into the release tab.
Use Special Service Tool: 501-D118A
(501-D118)
Mirror Remover.
-
Pull the lower edge of the interior mirror remover away from the windshield.
-
Slide the interior mirror off the mirror mount.
Mirror type 3
-

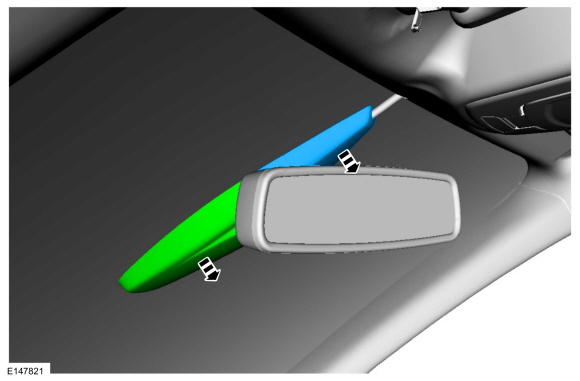

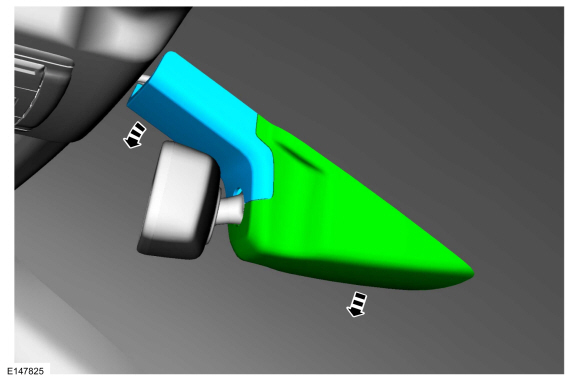

Remove the rain sensor covers.
-
Disconnect the interior mirror electrical connector.
-
Remove the interior mirror.
-

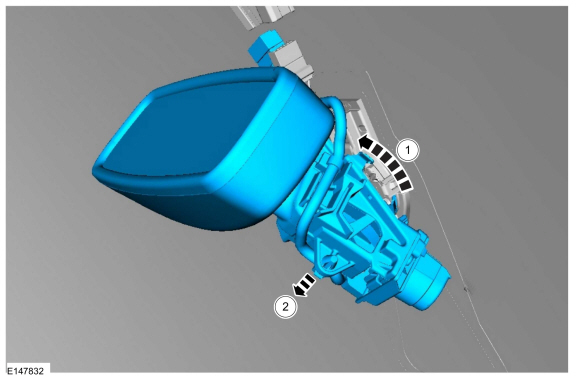

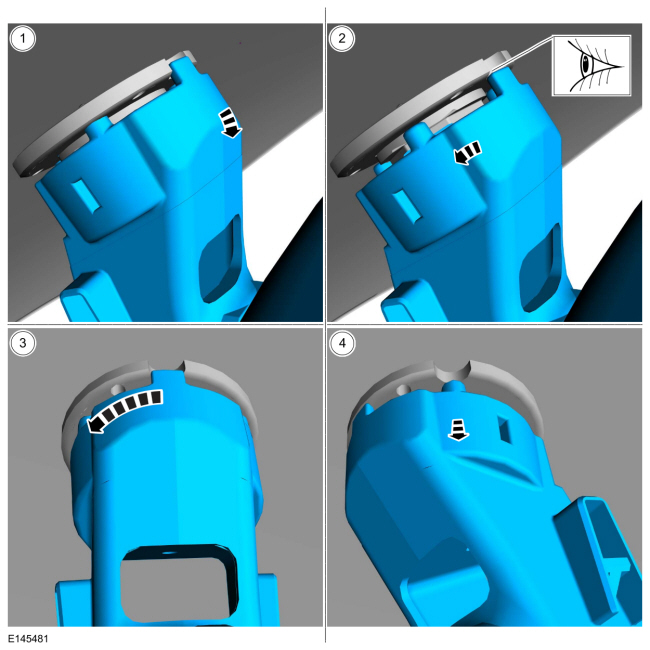

Position the interior mirror assembly to release the indexing tab.
-
Inspect the indexing tab and turn the interior mirror slightly counter clock-wise.
-
Turn the interior mirror 45 degrees counter clock-wise.
-
Pull the interior mirror off the mirror mount.
Mirror type 4
-
If a new mirror is being installed, use a diagnostic scan tool, begin the PMI process for the IPMAfollowing the on-screen instructions.
-
Remove the rain sensor covers.
-
Disconnect the interior mirror electrical connector.
-
Remove the interior mirror.
-
Turn the interior mirror assembly counter clock-wise.
-
Remove the interior mirror off the mirror mount.
Mirror type 5
-
Remove the interior mirror.
-

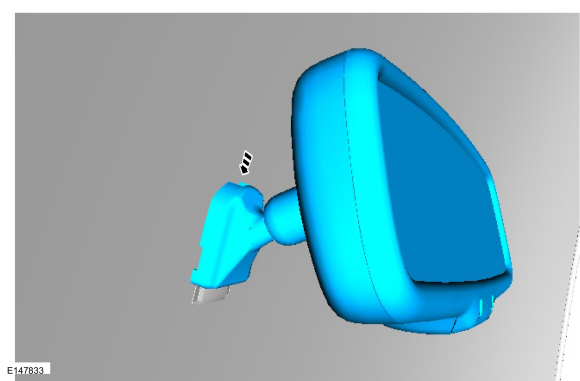

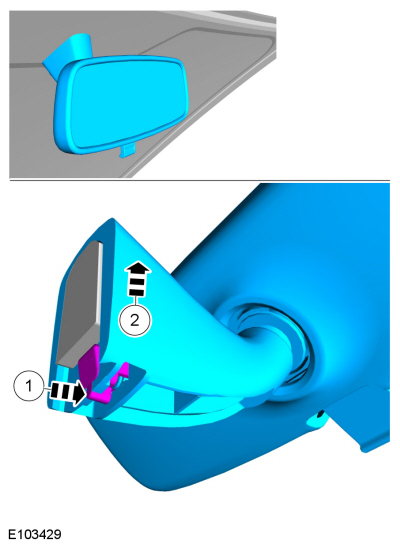

Release the locking tab.
-
Slide the interior mirror off the mirror mount.
Mirror type 6
-

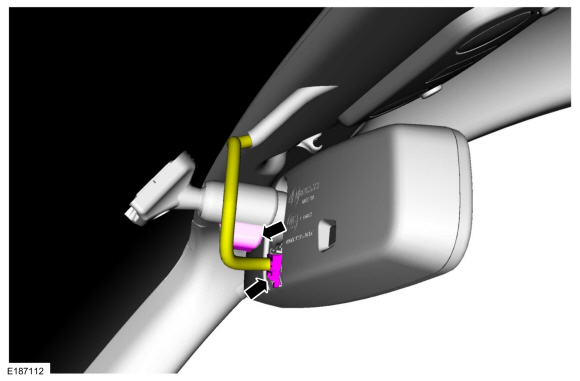

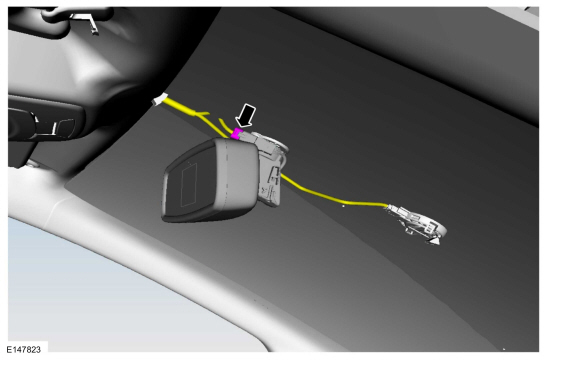

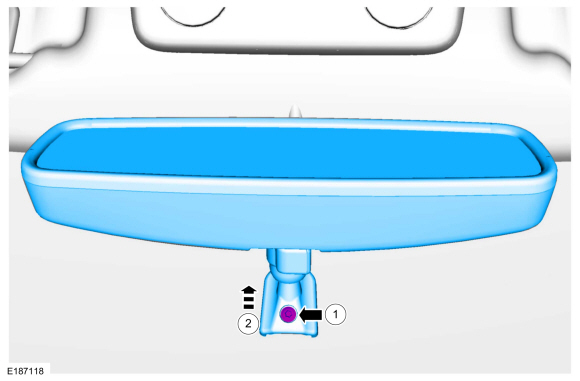

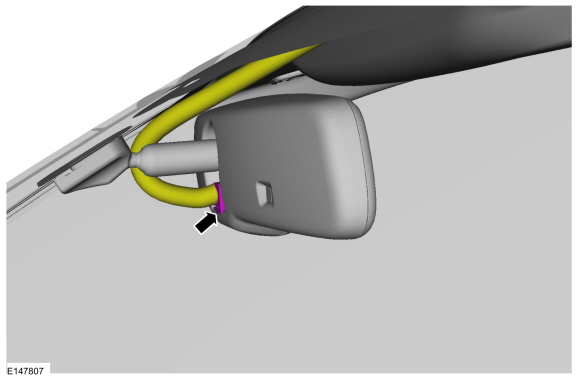

Disconnect the electrical connector and unclip the wiring harness.
-
Remove the interior mirror.
-
Loosen the set screw.
Torque:
16 lb.in (1.8 Nm)
-
Slide the interior mirror upward.
Installation
Mirror type 1
-
Click here to view a video version of this procedure.
-
Slide the interior rear view mirror over the windshield bracket from the top.
-
NOTE:
An audible click will be heard as the mirror fully seats.
Using the interior mirror installer, fully seat the interior mirror.
Use Special Service Tool: 501-191
Installer, Rear View Mirror.
-
If equipped, connect the electrical connector.
-
If equipped with a compass module which requires calibration, check the compass zone and calibration.
Mirror type 2
-

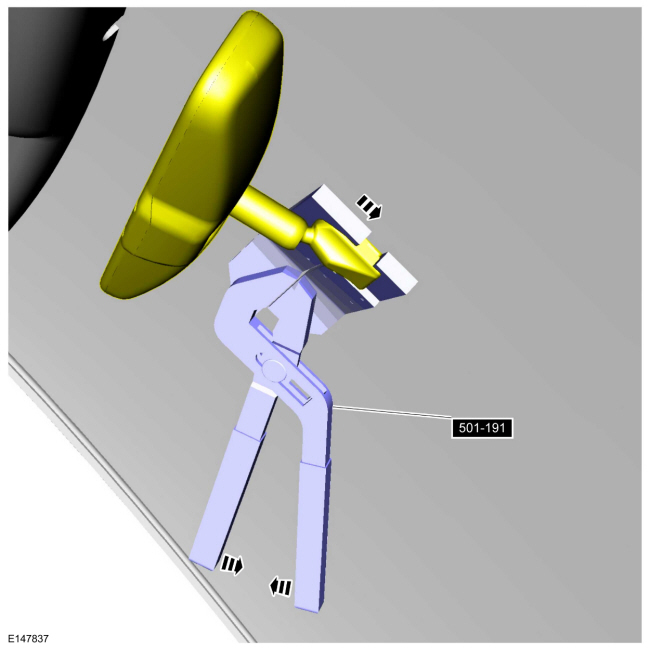

Using the interior mirror installer, fully seat the interior mirror.

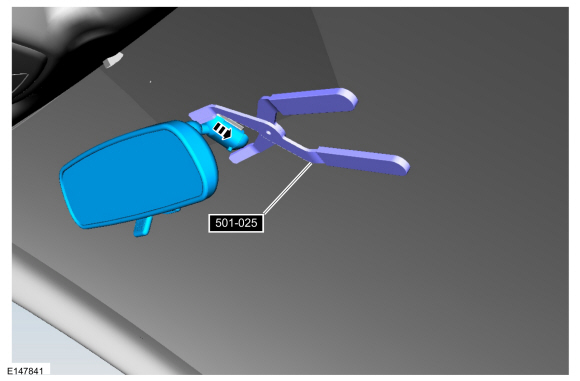

Use Special Service Tool: 501-025
Installer, Rear View Mirror.
-
If equipped with a compass module which requires calibration, check the compass zone and calibration.
Mirror type 3
-
To install, reverse the removal procedure.
Mirror type 4
-
To install, reverse the removal procedure.
-
-
If a new mirror has been installed, use diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.
-
If a new mirror has been installed, carry out
the camera alignment using scan tool following the on-screen
instructions under Toolbox>Body>Service Functions>Camera
Alignment.
Mirror type 5
-
Slide the interior mirror onto the mirror mount until the locking tab is engaged.
Mirror type 6
-
To install, reverse the removal procedure.
Synchronization
NOTE:
The power folding mirrors may need to be synchronized any
time the mirrors are folded or unfolded without using the folding
switch, or if a new power folding mirror is installed...
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information...
Other information:
Note: Your vehicle may have split
seatbacks that you must fold individually.
Note: Make sure the center safety belt is
unbuckled before folding the seatback.
To lower the seat back(s) from inside the
vehicle, do the following:
Pull the handle to release the seatback...
