Ford Fusion: Rear View Mirrors / Exterior Mirror. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
-
To remove the mirror assembly carry out steps 3 through 10.
-
To remove the mirror glass carry out steps 11 through 13.
-
To remove the mirror motor carry out steps 14 through 17.
-
To remove the mirror mounted turn signal lamp carry out steps 18 through 23.
-
To remove the puddle lamp carry out step 24.
Exterior rear view mirror assembly
-
Remove the front door interior trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

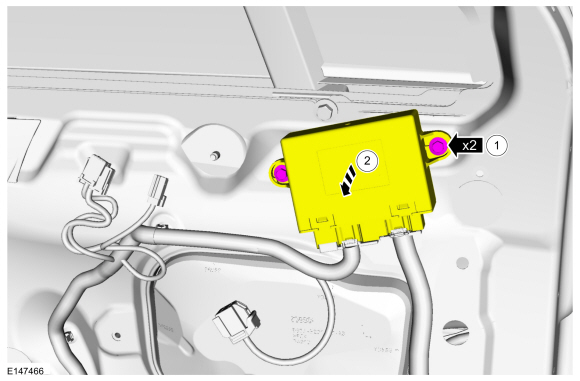

Position aside the door control module.
-

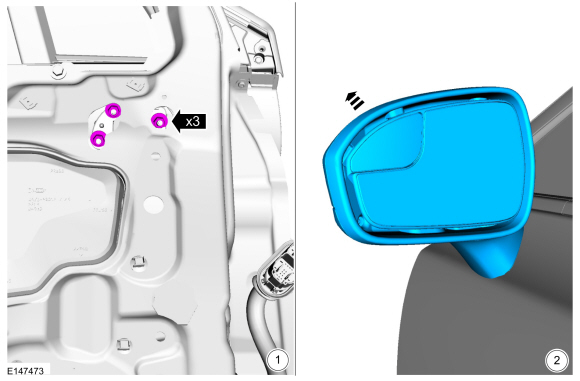

Remove the bolts.
Torque:
44 lb.in (5 Nm)
-
Position aside the door control module.
-

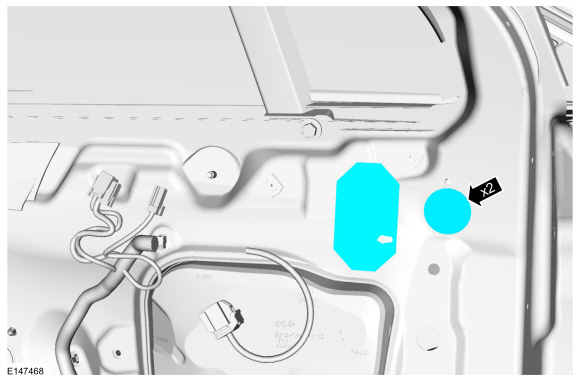

Remove the watershields.
-

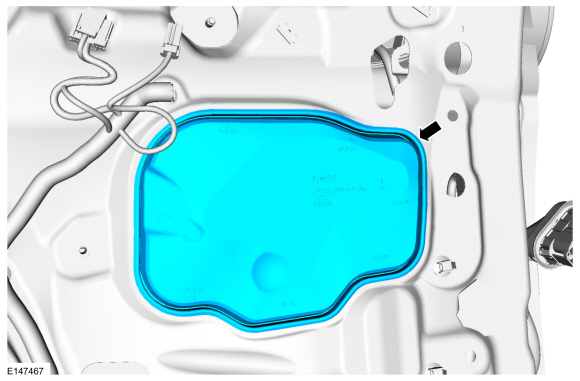

Remove the watershield.
-

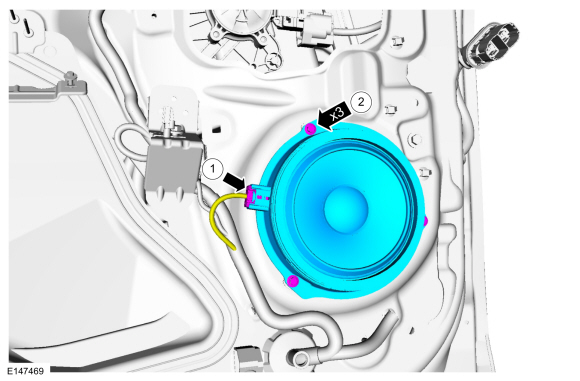

Remove the front door speaker.
-
Disconnect the electrical connector and position aside the wiring harness.
-
Remove the bolts and the front door speaker.
Torque:
22 lb.in (2.5 Nm)
-

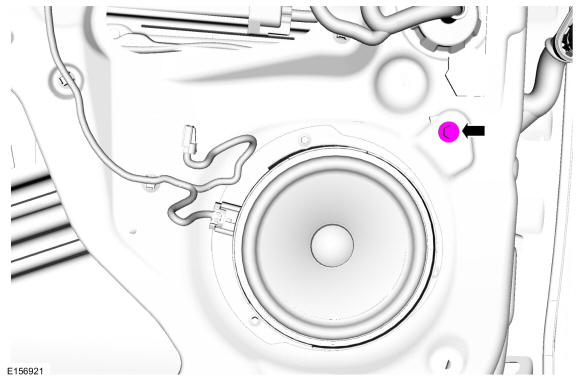

Remove the bolt.
-
NOTE:
Position the division bar off the window regulator track.
NOTE:
Access the exterior rear view mirror connector through the front door speaker opening.
Disconnect the electrical connector and position aside the wiring harness.
-
Remove the nuts and the exterior mirror assembly.
Torque:
80 lb.in (9 Nm)
Exterior rear view mirror glass
-
NOTE:
Vehicles not equipped with side obstacle detection.

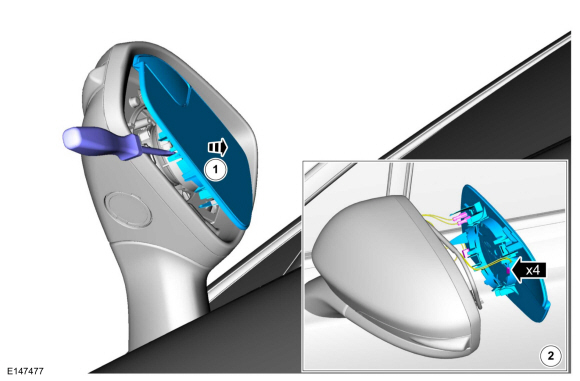

Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Vehicles equipped with side obstacle detection.

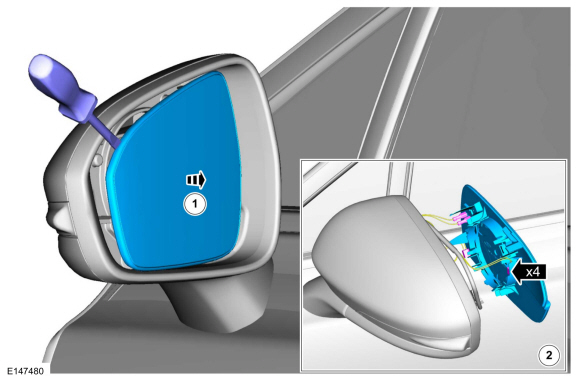

Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Driver side only

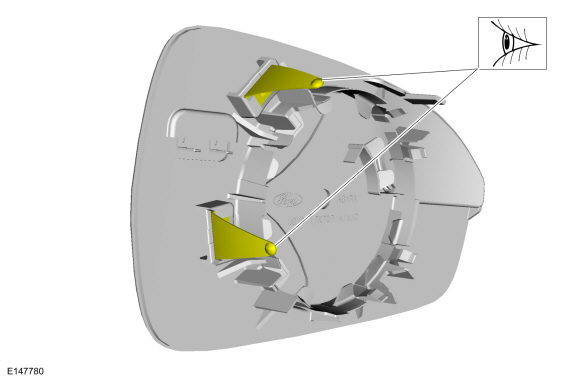

Inspect the mirror glass stabilization springs, replace the mirror glass if damaged.
Exterior rear view mirror motor
-
NOTE:
Vehicles without side obstacle detection.
Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Vehicles with side obstacle detection.
Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Driver side only
Inspect the mirror glass stabilization springs, replace the mirror glass if damaged.
-

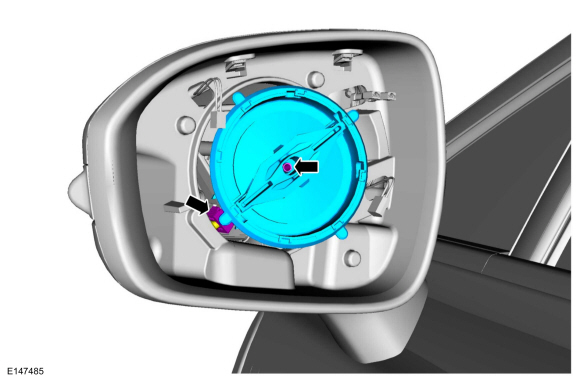

Remove the exterior mirror motor.
-
Remove the exterior mirror motor screw.
-
Disconnect the exterior mirror motor electrical connector.
-
Release the tabs and remove the exterior mirror motor.
Exterior rear view mirror mounted turn signal lamp
-
NOTE:
Vehicles without side obstacle detection.
Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Vehicles with side obstacle detection.
Remove the exterior mirror glass.
-
Position the exterior mirror glass to the full
upward and inward position, using a screwdriver to release the tabs
starting at the lower outboard side of mirror and continuing around the
mirror until all the tabs are released.
-
Disconnect the electrical connectors and remove the exterior mirror glass.
-
NOTE:
Driver side only
Inspect the mirror glass stabilization springs, replace the mirror glass if damaged.
-

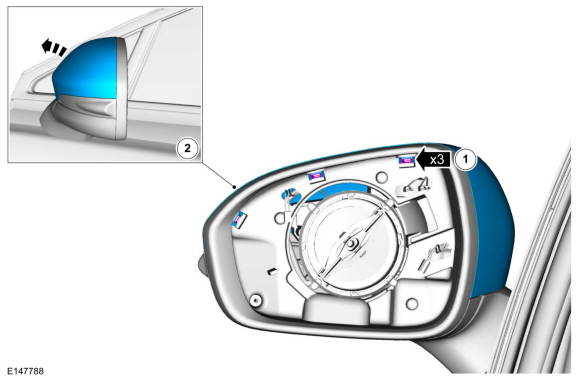

Remove the mirror cover.
-
Release the tabs.
-
Remove the mirror cover.
-

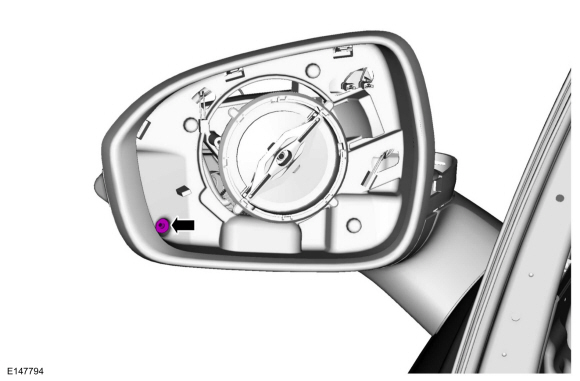

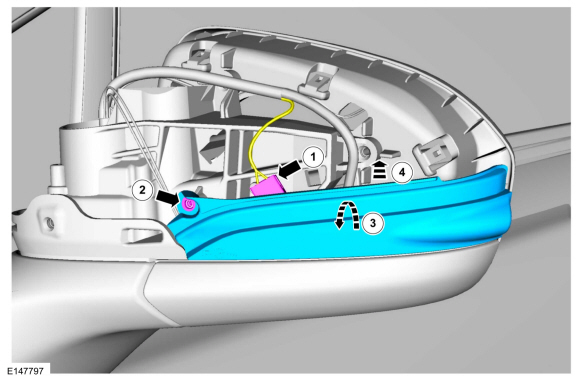

Remove the screw.
-
NOTE:
This step is only necessary when installing a new turn signal indicator.
-
Disconnect the electrical connector and position aside the wiring harness.
-
Remove the screw.
-
Release the tab.
-
Remove the turn signal.
Puddle lamp
-
NOTE:
Carry out this step only if a new puddle lamp is being installed.

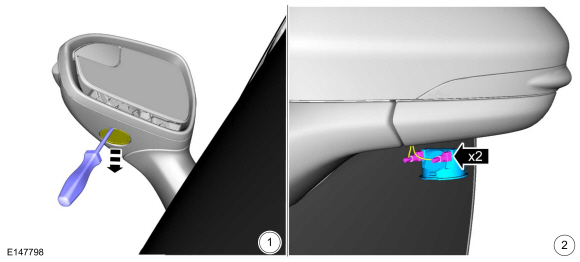

Remove the puddle lamp.
-
Using a screwdriver, release the tab and position the puddle lamp down.
-
Disconnect the electrical connectors and remove the puddle lamp
Installation
-
To install, reverse the removal procedure.
