Ford Fusion: Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Release Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Release Switch. Removal and Installation

Removal

Remove the luggage compartment lid moulding.
Refer to: Luggage Compartment Lid Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

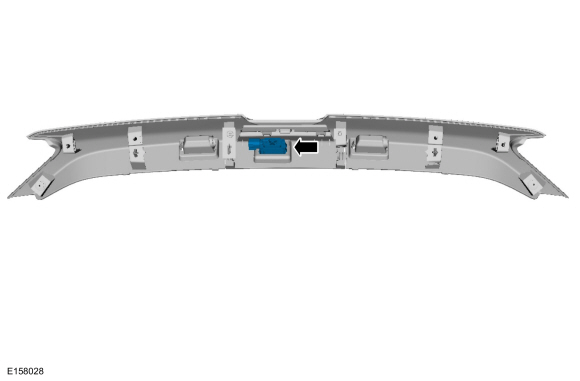

Release the luggage compartment lid release switch.

Installation

To install, reverse the removal procedure.
