Ford Fusion: Instrument Panel and Console / Overhead Console. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Consoles look different depending on option level.

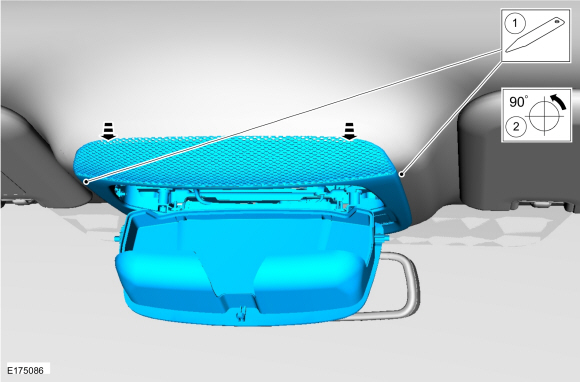

    1. Insert trim tool in location(s) shown.
    1. Rotate the tool 90 degrees to release the overhead console rear retainers.
Ford Fusion. Overhead Console. Removal and Installation

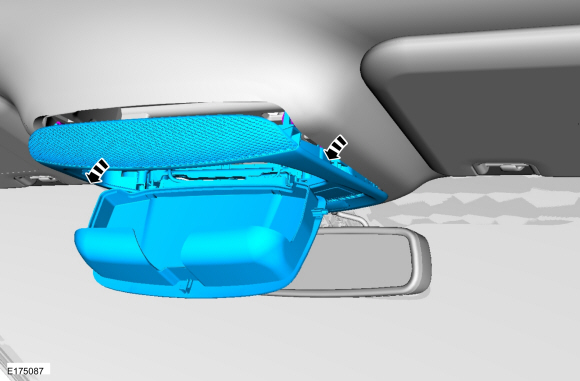

  1. Working from the rear to the front along each side release the overhead console retainers.
Ford Fusion. Overhead Console. Removal and Installation

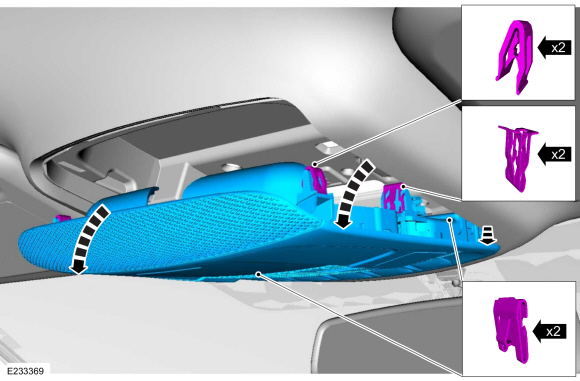

  1. Rotate to release the clips and remove the overhead console.
Ford Fusion. Overhead Console. Removal and Installation

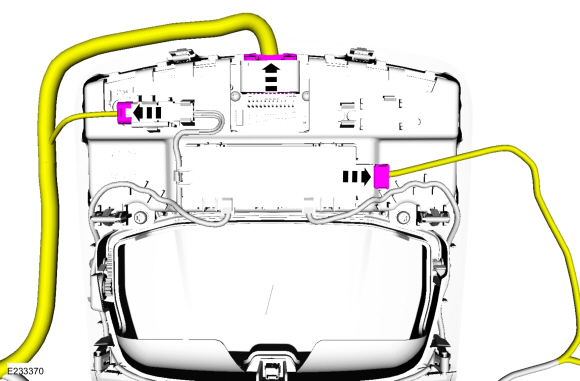

  1. Disconnect the electrical connectors.
Ford Fusion. Overhead Console. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
