Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Pump Assembly. Description and Operation
Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Pump Assembly. Description and Operation

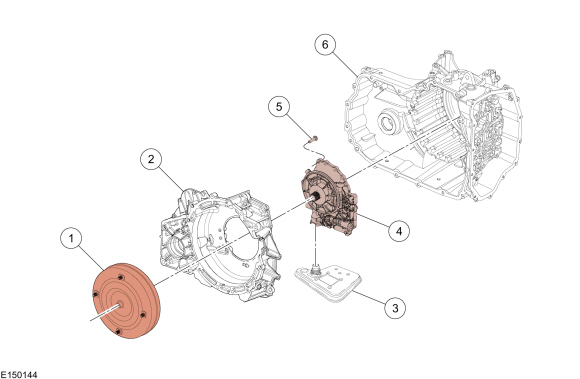

Fluid Pump and Transmission Fluid Filter Components
| Item | Description |
| 1 | Torque converter |
| 2 | Torque converter housing |
| 3 | Transmission fluid filter |
| 4 | Pump assembly |
| 5 | Pump-to-torque converter housing bolt |
| 6 | Transmission case |
Mechanical Operation
The transmission fluid in the sump area at the bottom of the transmission case flows through a transmission fluid filter to the pump assembly. The pump is bolted to the torque converter housing and is driven by the torque converter hub.
| Item | Description |
| 1 | Stator support |
| 2 | Pump gears |
| 3 | Pump housing |
| 4 | TCC control valve assembly |
| 5 | Main pressure regulator valve assembly |
Mechanical Operation
NOTE: The listed components are only serviced as a pump assembly.
The pump assembly contains the main pressure regulator valve assembly, the TCC control valve assembly, the stator support and the pump gears.
Input Shaft. Description and Operation
Input Shaft Exploded View
Item
Description
1
Direct (3, 5, R)/overdrive (4, 5, 6) clutch hub
2
Input shaft
3
Direct (3, 5, R) clutch
4
Overdrive (4, 5, 6) clutch
5
Center planetary sun gear
Input Shaft Cutaway View
Input Shaft
The
input shaft is part of the di..
