Ford Fusion: Seatbelt Systems / Rear Seatbelt Buckle RH and Center. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Seatbelt Systems / Rear Seatbelt Buckle RH and Center. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear seat cushion.
    Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

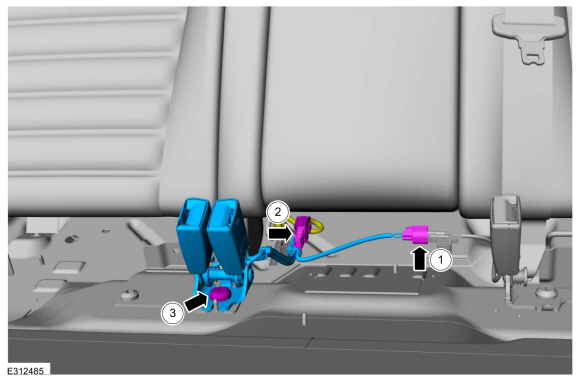

  1. Remove the rear RH and center seatbelt buckle.
    1. Disconnect the electrical connector.
    1. Detach and disconnect the electrical connector.
    1. Remove the bolt.
      Torque: 35 lb.ft (48 Nm)
Ford Fusion. Rear Seatbelt Buckle RH and Center. Removal and Installation

Installation

  1. NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

    To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
