Ford Fusion: Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch LH. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch LH. Removal and Installation

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Follow the health and safety precautions.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

NOTE: The steering wheel is removed for clarity.

NOTE: Make sure the component terminals are not bent or damaged.

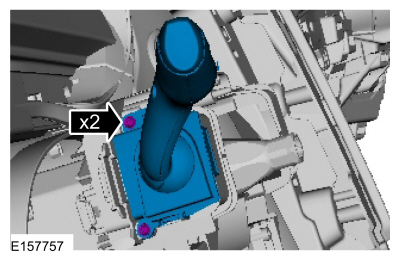

Remove the retainers and the LH steering column multifunction switch.

Installation

To install, reverse the removal procedure.
