Ford Fusion: Exterior Lighting / Stoplamp Switch. Removal and Installation
Removal
NOTICE:
Do not press, pull or otherwise move the brake pedal while
removing or installing the stoplamp switch. The switch must be installed
with the booster push rod attached to the brake pedal and with the
brake pedal in the at-rest position. Installing the switch with the
brake pedal in any other position results in incorrect adjustment and
damage to the switch.
NOTE:
Removal steps in this procedure may contain installation details.
-

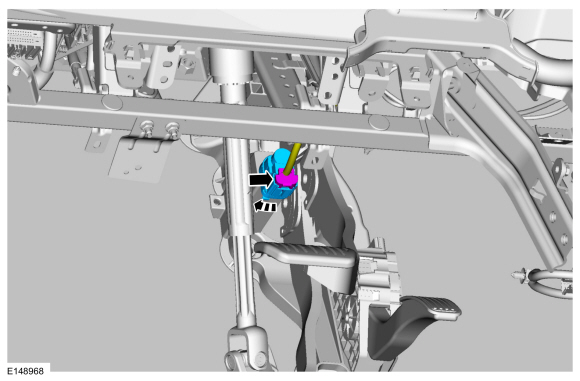

Remove the stoplamp switch.
-
Disconnect the stoplamp switch electrical connector.
-
Turn the stoplamp switch clock-wise and remove the switch.
Installation
-
To install, reverse the removal procedure.
