Ford Fusion: Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / Transmission Control Switch (TCS). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / Transmission Control Switch (TCS). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

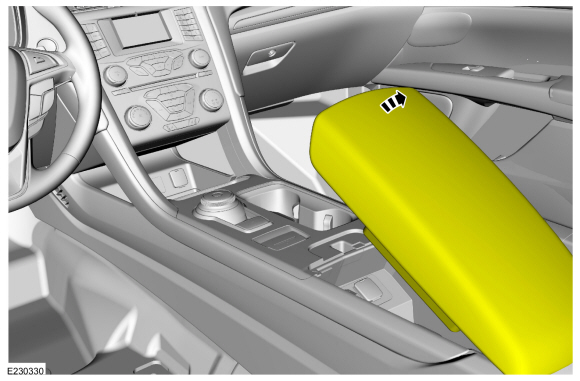

Open the console.

Ford Fusion. Transmission Control Switch (TCS). Removal and Installation

On both sides.

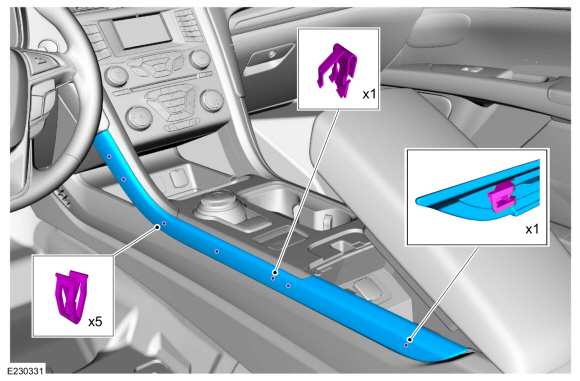

Detach the clips and remove the floor console upper side finish panels.

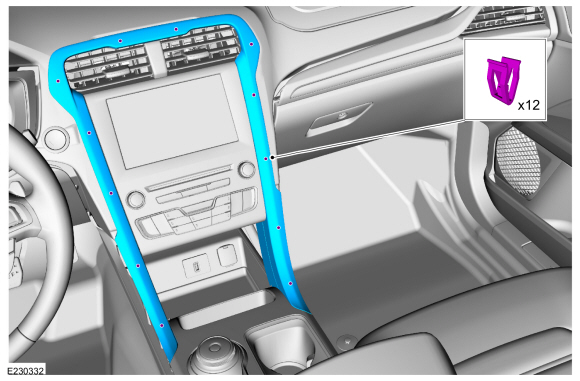

Detach the clips and remove the instrument panel center finish panel.

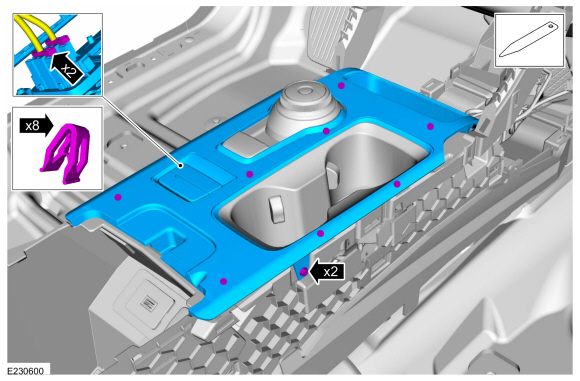

Remove the screws, detach the clips, disconnect the electrical connectors and remove the floor console finish panel.

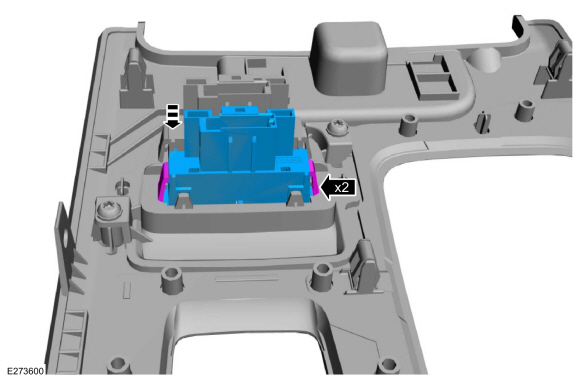

Release the tabs and remove the TCS.

Installation

To install, reverse the removal procedure.

Selector Lever Cable Bushing. Removal and Installation

Removal Turn the ignition switch to the OFF position and apply the parking brake. Remove the air cleaner assembly...

Transmission Range Control Module (TRCM). Removal and Installation

Removal With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
