Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Transmission Description - Overview. Description and Operation

Overview

Ford Fusion. Transmission Description - Overview. Description and Operation

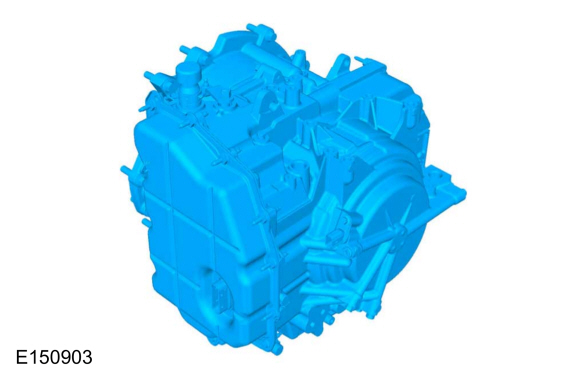

This automatic transmission is a 6-speed transmission with electronic shift control. It is designed for operation in a transverse powertrain for FWD and AWD vehicles.

This transmission has a 4-element torque converter design, which includes a TCC and a geartrain with 3 planetary gearsets.

The hydraulic control system of this transmission uses 7 electronically controlled solenoids for:

  • Shift feel (through line pressure control and shift pressure control)
  • Shift scheduling and timing
  • TCC operation

Identification Tags

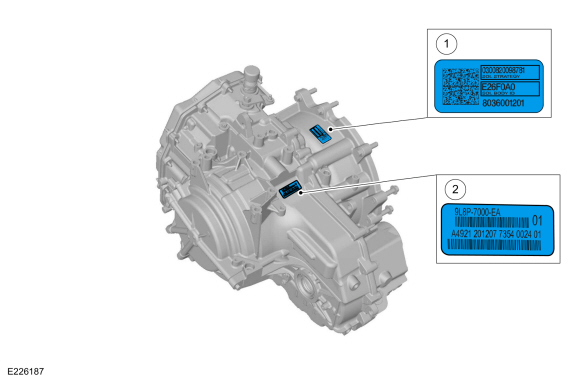

Identification Tag Location

Ford Fusion. Transmission Description - Overview. Description and Operation
Item Description
1 Solenoid body identification tag
2 Transmission identification tag

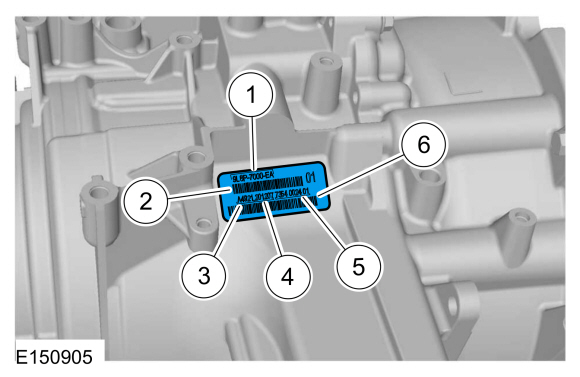

Transmission Identification Tag

Ford Fusion. Transmission Description - Overview. Description and Operation
Item Description
1 Transmission part number
2 Bar code 1
3 Assembly plant line shift
4 Transmission build date (DDMMYY)
5 Transmission serial number
6 Bar code 2

When servicing transmission, use the transmission identification tag located on top of the transmission case.

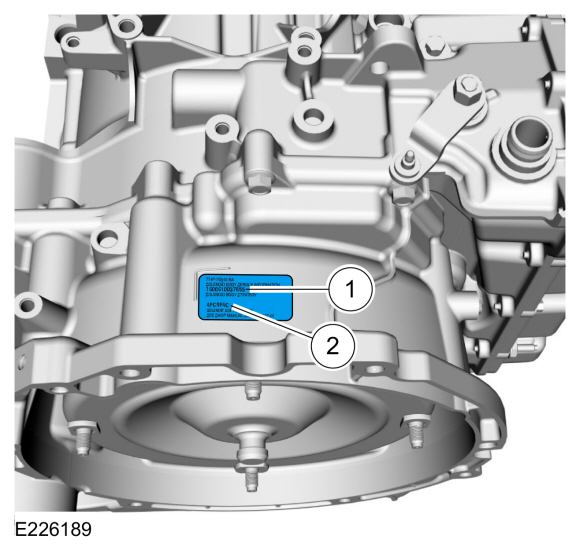

Original Solenoid Body Tag

Ford Fusion. Transmission Description - Overview. Description and Operation
Item Description
1 13 - digit solenoid body strategy
2 7 - digit solenoid body identification

The solenoid body strategy is programmed into the PCM to control the shift, Line Pressure Control (LPC) and TCC solenoids to prevent harsh shifts. The solenoid body tag on the transmission case contains the 13-digit solenoid body strategy and the 7-digit solenoid body identification.

Replacement Solenoid Body Tag

Ford Fusion. Transmission Description - Overview. Description and Operation
Item Description
1 13 - digit solenoid body strategy
2 7 - digit solenoid body identification

When a new solenoid body is installed, a new solenoid body strategy file is downloaded into the PCM. A replacement solenoid body tag is supplied with the new solenoid body which contains the 13-digit solenoid body strategy and the 7-digit solenoid body identification. The new tag is placed over the original solenoid body tag.

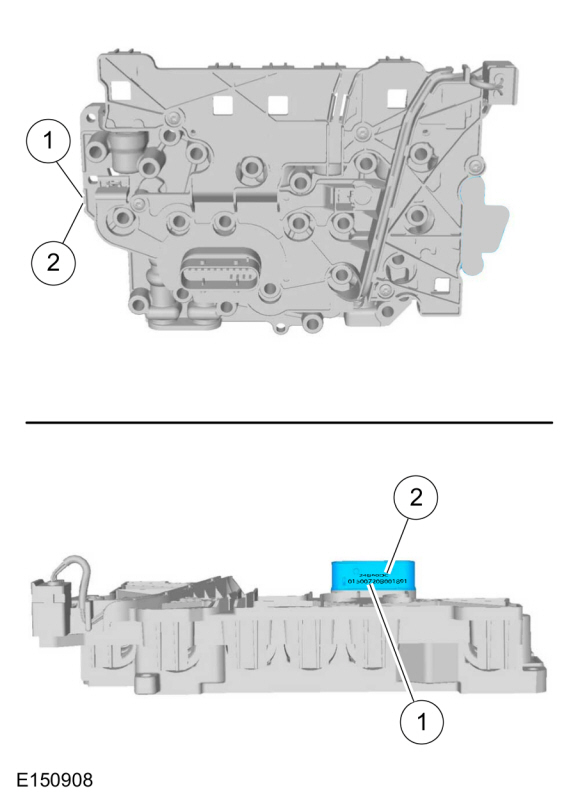

Solenoid Body Identification and Strategy

Ford Fusion. Transmission Description - Overview. Description and Operation
Item Description
1 13 - digit solenoid body strategy
2 7 - digit solenoid body identification

If the solenoid body strategy printed on the solenoid body connector does not match the solenoid body tag, a new solenoid body must be installed and the solenoid body strategy must be downloaded into the PCM or harsh shifts will result.

Solenoid Band Number

Ford Fusion. Transmission Description - Overview. Description and Operation

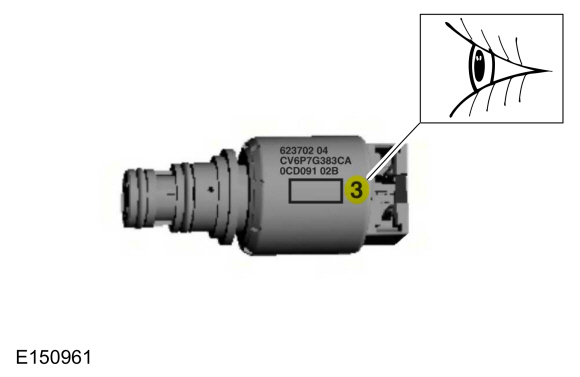

The solenoids are calibrated from the factory and are not all the same. The solenoids can be replaced separately, but only with a replacement solenoid with a injector nozzle and band number that matches the solenoid being replaced. When solenoid(s) are replaced, the new solenoid band number must match the old solenoid band number. The band number is next to the two-dimensional matrix barcode on the side of the solenoid and will be a 1, 2, 3, 4 or 5.

    Specifications

      Lubricants, Fluids, Sealers and Adhesives   Specifications Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC MERCON® LV If the transmission fluid does not drain from the oil leveling plug hole, add transmission fluid in increments of 0...

    Transmission Description. Description and Operation

    Disassembled Views Auto-Start-Stop Item Part Number Description 1 70057005 Transmission case 2 7A1307A130 Clutch support tower 3 7D0197D019 Clutch support tower seals (4 required) 4 W302855W302855 Clutch support tower bolt (3 required) 5 7F2427F242 No...
