Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Transmission Fluid Level Check. General Procedures

Materials

Name Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC
WSS-M2C938-A
MERCON® LV,


Check

  1. Connect the diagnostic scan tool to the vehicle. Monitor the TFT PID.
  1. With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93° C (185-200° F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93°C (185-200°F).
  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

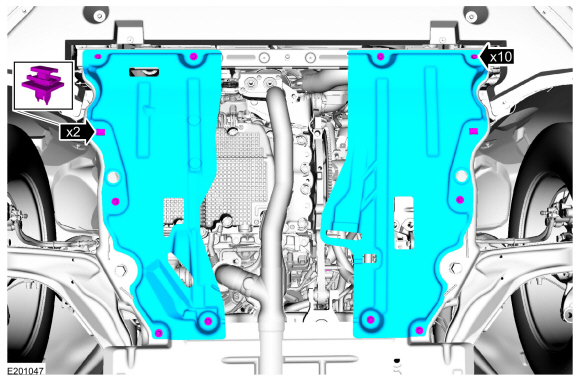

  1. Remove the bolts, grommets and the engine undershield.
Ford Fusion. Transmission Fluid Level Check. General Procedures
  1. Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.
  1. With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93° C (185-200° F). Check the transmission fluid is even with the oil leveling plug hole.

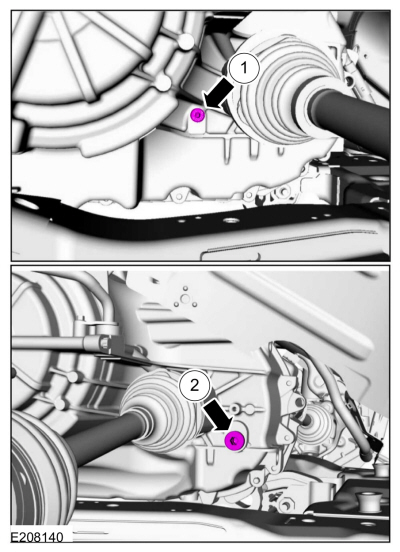

    1. Standard transmission case (M10 plug)
    1. Fuel economy transmission case (M20 plug)
Ford Fusion. Transmission Fluid Level Check. General Procedures

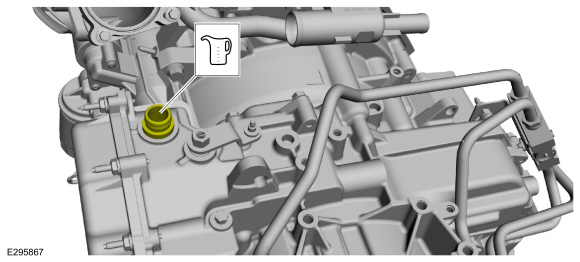

  1. If the transmission fluid is not even with the oil leveling plug hole, remove the transmission vent on the oil fill tube.
Ford Fusion. Transmission Fluid Level Check. General Procedures
  1. Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.
    Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV, )
Ford Fusion. Transmission Fluid Level Check. General Procedures

  1. Install the oil leveling plug.
    1. Standard transmission case (M10 plug)
      Torque: 71 lb.in (8 Nm)
    1. Fuel economy transmission case (M20 plug)
      Torque: 26 lb.ft (35 Nm)
Ford Fusion. Transmission Fluid Level Check. General Procedures

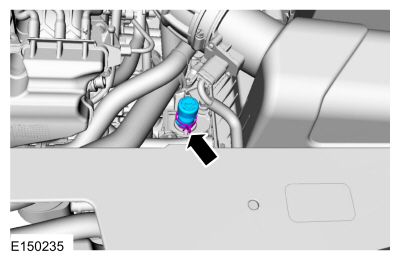

  1. With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.
Ford Fusion. Transmission Fluid Level Check. General Procedures
  1. Install the bolts, grommets and the engine undershield.
    Torque: 13 lb.in (1.5 Nm)
Ford Fusion. Transmission Fluid Level Check. General Procedures

    Transmission Fluid Exchange. General Procedures

    Materials Name Specification Motorcraft® MERCON® LV Automatic Transmission FluidXT-10-QLVC WSS-M2C938-AMERCON® LV,   Connect With the vehicle in NEUTRAL, position it on a hoist...

    Transmission Strategy Download. General Procedures

    Programming Using the scan tool, select module Programming and Programmable Parameters under the toolbox icon and select transmission. Follow the instructions displayed on the scan tool...
