Ford Fusion: Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Wiper Pivot Arm. Removal and Installation

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTE: LH side shown, RH side similar.

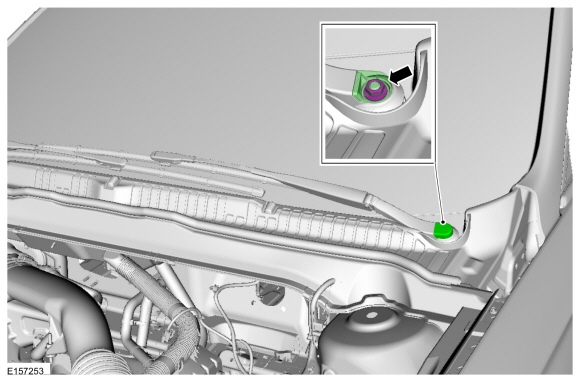

  1. Remove the wiper pivot arm nut cover and remove the wiper pivot arm nut.
Ford Fusion. Windshield Wiper Pivot Arm. Removal and Installation

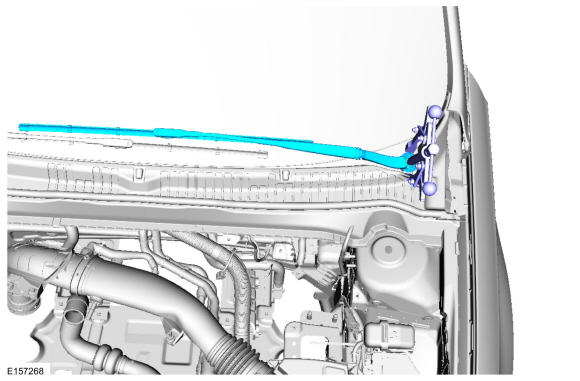

  1. Remove the wiper pivot arm.
    Use the General Equipment: Two Leg Puller
Ford Fusion. Windshield Wiper Pivot Arm. Removal and Installation

Installation

  1. Verify the windshield wiper motor is in the PARK position.
    1. NOTE: The ignition switch must remain ON during installation of wiper pivot arms.

      Set the ignition switch to the ON position.

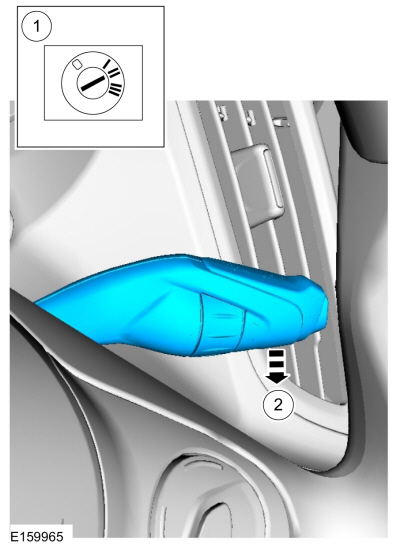

    1. Pull the wiper switch down to cycle the windshield wiper motor.
Ford Fusion. Windshield Wiper Pivot Arm. Removal and Installation
    1. NOTE: LH windshield wiper blade is always positioned above the RH windshield wiper blade.

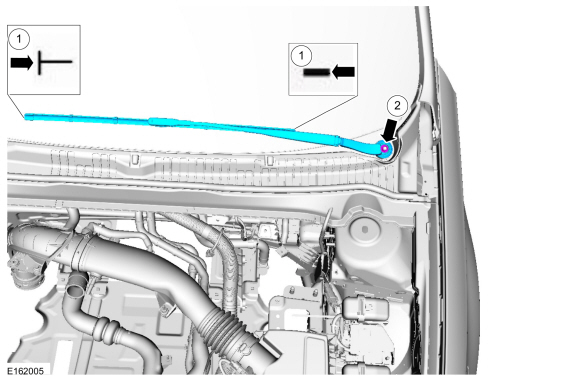

      Align windshield wiper blade with the two marks on the windshield.
    1. Torque: 22 lb.ft (30 Nm)
Ford Fusion. Windshield Wiper Pivot Arm. Removal and Installation

    1. Install the wiper pivot arm nut and install the wiper pivot arm nut cover.
    1. Turn the ignition OFF.
Ford Fusion. Windshield Wiper Pivot Arm. Removal and Installation

    Windshield Washer Reservoir. Removal and Installation
