Ford Fusion: Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4 / Accessory Drive. Diagnosis and Testing

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4 / Accessory Drive. Diagnosis and Testing

Inspection and Verification

  1. Verify the customer concern.
  1. Visually inspect for obvious signs of mechanical damage.

  Visual Inspection Chart


Mechanical
  • Damaged or contaminated accessory drive belt
  • Damaged or contaminated pulley(s)
  • Incorrect accessory drive belt
  • Incorrect fitment of the accessory drive belt
  • Generator
  • Air conditioning (A/C) compressor
  • Pulley(s)
  • Loose hardware
  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

Accessory Drive Belt Concerns

NOTICE: Do not lubricate the accessory drive belt as potential damage to the accessory drive belt material construction may occur.

Cracking

Accessory drive belts are made from rubber which hardens with time and can develop cracks. As the accessory drive belt runs on the back of some of the pulleys, the cracks are opened up. Small cracks are not considered to be a failure of the accessory drive belt. Only if the crack is deep enough to reach the bottom of the groove to expose the cord or any chunks are found to be missing from the accessory drive belt, is the accessory drive belt condition considered to be unacceptable.

  1. Check the accessory drive belt for cracks. If the damage exceeds the acceptable limit, install a new accessory drive belt.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

Chunking

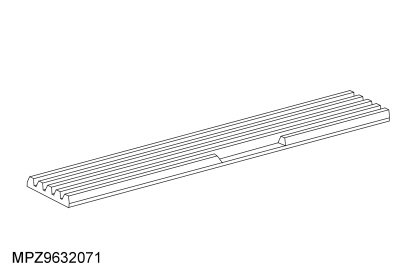

Chunking describes the condition where long lengths of rubber become detached from the ribs of the accessory drive belt. This is considered to be a failure of the accessory drive belt.

Ford Fusion. Accessory Drive. Diagnosis and Testing
  1. Check the accessory drive belt for damage. If any chunks are found to be missing, install a new accessory drive belt.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

Pilling

Pilling is dust that forms in between the ribs of the accessory drive belt from rubber that is worn off the accessory drive belt when it is new. There may also be loose particles left on the accessory drive belt during the manufacturing process. These are worn off and form into small balls of rubber that then get trapped in the grooves of the accessory drive belt. This condition will usually clear itself within 4800 km - 8000 km (3000 miles - 5000 miles) of normal driving.

Ford Fusion. Accessory Drive. Diagnosis and Testing

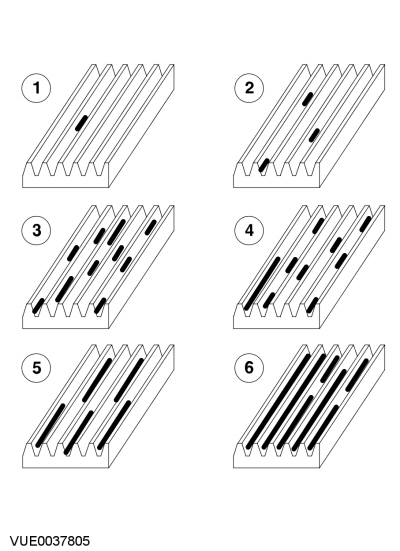

  1. Check the accessory drive belt for pilling. The condition of the accessory drive belt should be compared against the illustration.
    1. Small scattered pills. Not considered a concern. No action required.
    1. Small scattered pills. Not considered a concern. No action required.
    1. Longer pills up to 50% of the rib height. Possible noise concern. INSTALL a new accessory drive belt if noise is apparent.
      REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    1. Longer pills up to 50% of the rib height. Possible noise concern. INSTALL a new accessory drive belt if noise is apparent.
      REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    1. Heavy deposits in the grooves. Possible noise and stability concern. INSTALL a new accessory drive belt.
      REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    1. Heavy deposits in the grooves. Possible noise and stability concern. INSTALL a new accessory drive belt.
      REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

Incorrect fitment

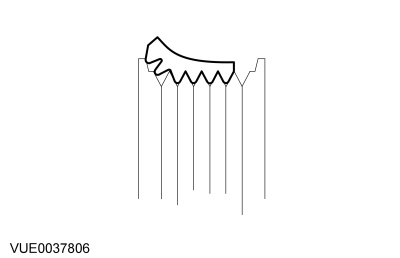

Accessory drive belt noise can be generated by the accessory drive belt being incorrectly fitted on the pulley as shown in the following illustration. Make sure that all the V grooves on the accessory drive belt contact correctly with the pulley.

Ford Fusion. Accessory Drive. Diagnosis and Testing
  1. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart.

Symptom Chart

Symptom Possible Sources Action
  • Accessory drive belt noise
  • Accessory drive system
  • Use a stethoscope or other listening device to determine the source of the noise. INSTALL new components as necessary.
  • Accessory drive belt incorrectly installed.
  • CHECK the accessory drive belt is correctly installed in the pulley grooves. INSTALL a new accessory drive belt as necessary.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  • Pulley(s).
  • CHECK the pulley(s) for damage, freedom of rotation, stone entrapment and alignment. INSTALL new components as necessary.
  • Lubricant or other contamination.
  • CHECK the accessory drive belt for contamination or damage. RECTIFY the source of the leak and INSTALL a new accessory drive belt.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  • NOTE: Chirp is defined as a twittering noise, often intermittent
  • Accessory drive belt chirp
  • Pulley misalignment (usually evident at idle).
  • CHECK that the accessory drive belt is running centrally on the flat pulleys.
  • CHECK the pulleys for excessive end float and bent flanges.
  • With the engine running at idle, use a stethoscope to identify the source of the noise. INSTALL new components as necessary.
  • NOTE: Rattle is defined as a metallic knocking noise
  • Accessory drive belt rattle
  • Loose components or hardware.
  • CHECK the components or hardware for correct installation and tighten as necessary.

Component Tests

Accessory Drive Belt Tensioner - Static Check

The accessory drive belt tensioner may be checked statically as follows:

  1. Inspect the area surrounding the accessory drive belt tensioner for lubricant or other contamination. Rectify any leaks before installing a new accessory drive belt tensioner. If the accessory drive belt tensioner is contaminated, do not attempt to clean it as the damping mechanism inside may be damaged. INSTALL a new accessory drive belt tensioner as necessary.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Detach the accessory drive belt in the area of the accessory drive belt tensioner.

  1. NOTE: The accessory drive belt tensioner has a damping feature, which is usually a friction device, therefore some friction within the system is normal.

    Using the correct tool, move the accessory drive belt tensioner from its relaxed position through its full stroke and back to the relaxed position to make sure there is no excessive stick, grab or bind, and to make sure there is tension on the accessory drive belt tensioner spring.
  1. Rotate the accessory drive belt tensioner pulley and check for damage, freedom of rotation and alignment. INSTALL a new accessory drive belt tensioner as necessary.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. If the accessory drive belt tensioner meets the above criteria, proceed to test the accessory drive belt tensioner dynamically. If the accessory drive belt tensioner does not meet the above criteria, INSTALL a new accessory drive belt tensioner.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

Accessory Drive Belt Tensioner - Dynamic Check

The accessory drive belt tensioner may be checked dynamically as follows:

  1. With the engine running, observe the accessory drive belt tensioner movement. The accessory drive belt tensioner should move (respond) when the engine is accelerated rapidly or when the A/C clutch cycles ON and OFF (the degree of movement can be up to 4 mm). If the accessory drive belt tensioner movement is not constant without engine acceleration or A/C clutch cycling, a pulley or shaft is possibly bent, out of round, or the damping mechanism inside the accessory drive belt tensioner may be damaged. INSTALL a new accessory drive belt tensioner as necessary.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Excessive accessory drive belt rideout (uneven depth of grooves in the accessory drive belt) may cause excessive accessory drive belt tensioner movement. Check the condition by installing a new accessory drive belt.
    REFER to: Accessory Drive Belt (303-05A Accessory Drive - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
