Ford Fusion: Fuel Tank and Lines - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Tank. Removal and Installation
Special Tool(s) /
General Equipment
Hose Clamp(s) |
Powertrain Jack |
Removal
NOTE:
Removal steps in this procedure may contain installation steps.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Release the fuel system pressure.
Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
-
Drain the fuel tank.
Refer to: Fuel Tank Draining (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
-

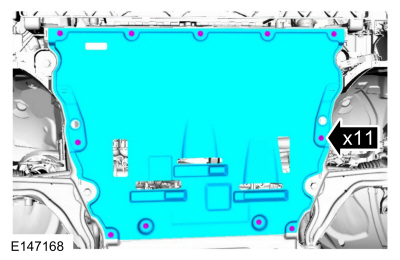

Remove the retainers and the splash shield.
-

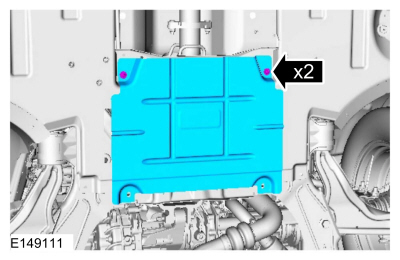

Remove the retainers and the air deflector.
-

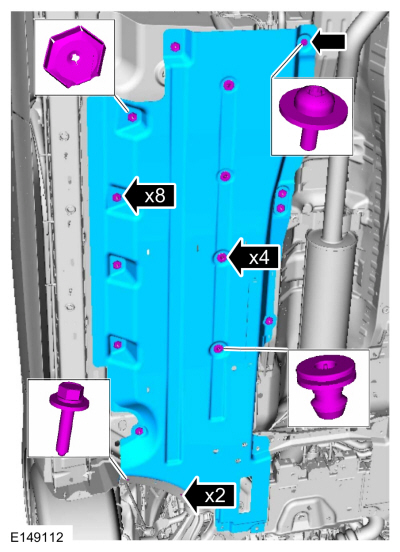

Remove the retainers and the heat shield.
-
Remove the exhaust.
Refer to: Muffler and Tailpipe (309-00A Exhaust System - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
-
If equipped.

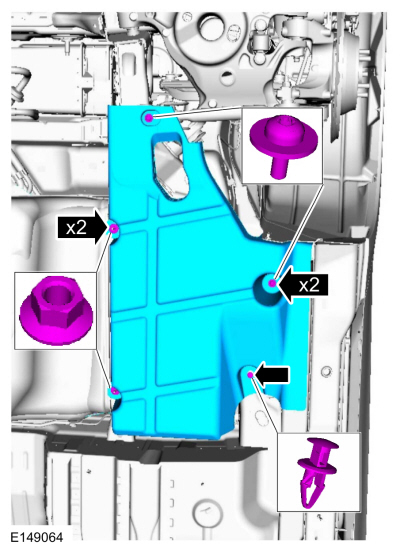

Remove the retainers, clip and air deflector.
-

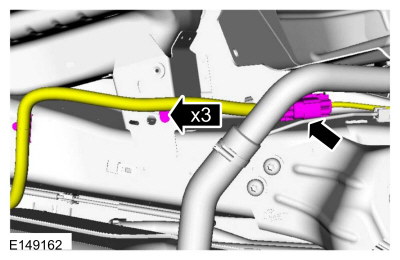

Disconnect the electrical connector and position the harness aside.
-

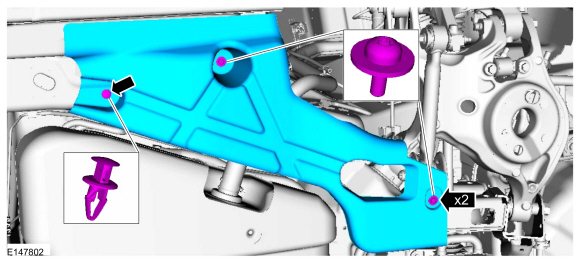

Remove the retainers and the deflector.
-
NOTICE:
Do not remove the hose clamp at the fuel tank filler
pipe hose to fuel tank connection. The plastic tank is susceptible to
damage with over torquing and or multiple re-torques.
-

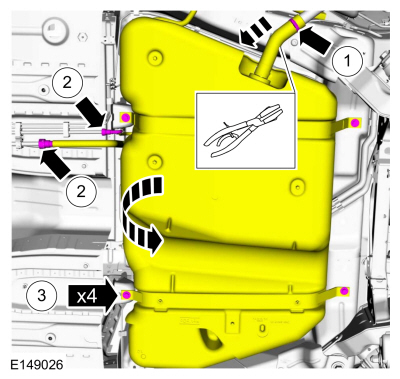

Loosen the clamp and disconnect the hose from the fuel filler pipe.
-
Refer to: Spring Lock Couplings (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
-
Remove the fuel tank strap bolts.
Use the General Equipment: Powertrain Jack
Use the General Equipment: Hose Clamp(s)
Torque:
1.:
35 lb.in (4 Nm)
2.:
18 lb.ft (25 Nm)
-

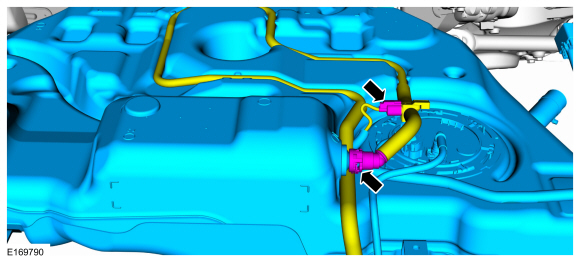

Lower the fuel tank far enough to disconnect the electrical connector and vapor lines. Remove the fuel tank.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
Use the General Equipment: Powertrain Jack
Installation
-
NOTE:

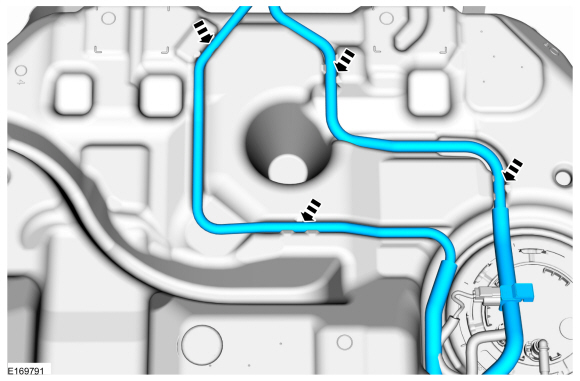

Prior to installing fuel tank strap bolts, make sure
that the vapor lines are positioned correctly on the top of the fuel
tank.
To install, reverse the removal procedure.
