Removal

NOTE: The removal steps in this procedure may include installation details.

Remove the bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

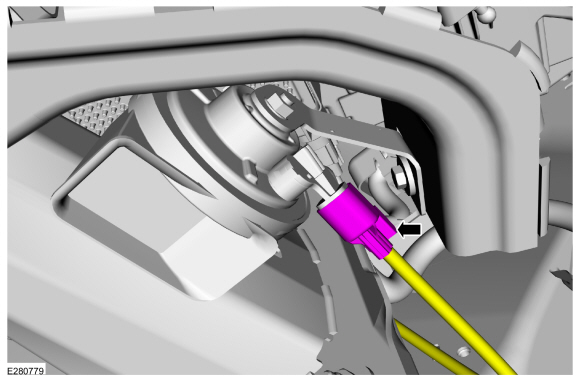

Disconnect the electrical connector.

Ford Fusion. Horn. Removal and Installation

Remove the bolt and the horn.
Torque: 106 lb.in (12 Nm)

Installation

To install, reverse the removal procedure.
