Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

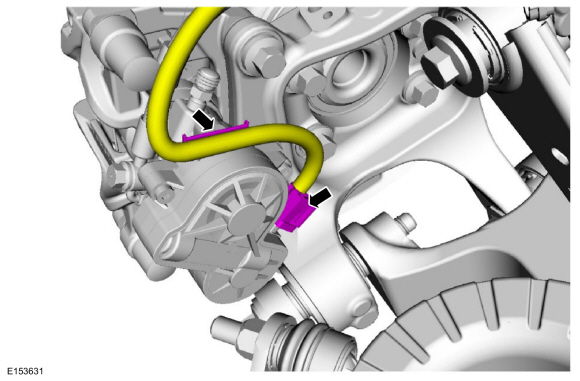

  1. Disconnect the electrical connector and detach the wiring retainer.
Ford Fusion. Parking Brake Actuator Motor. Removal and Installation
  1. NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

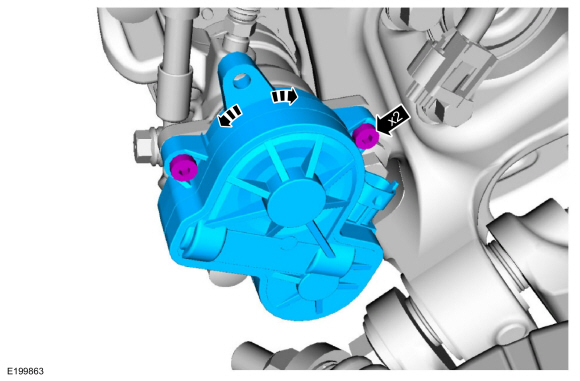

    Remove the bolts and using a twisting motion, remove the parking brake actuator motor.
    Torque: 71 lb.in (8 Nm)
Ford Fusion. Parking Brake Actuator Motor. Removal and Installation

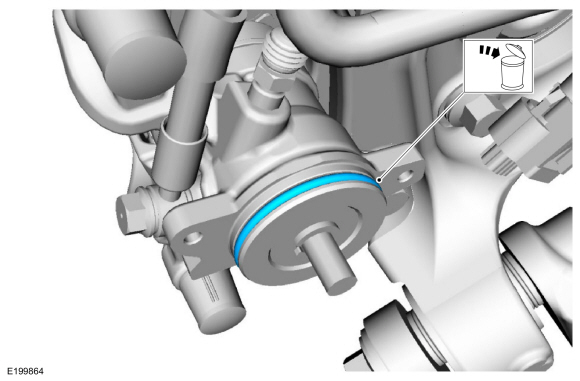

  1. Remove and discard the O-ring.
Ford Fusion. Parking Brake Actuator Motor. Removal and Installation

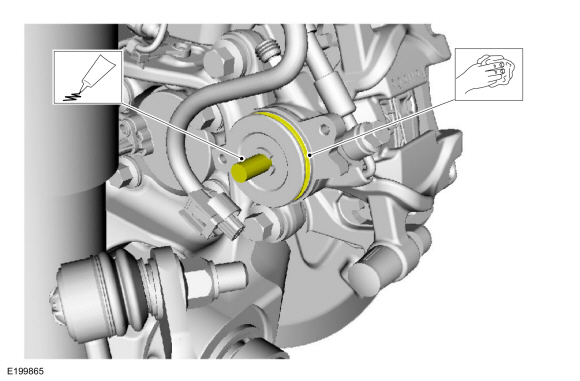

  1. Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking kit.
Ford Fusion. Parking Brake Actuator Motor. Removal and Installation

Installation

  1. NOTE: Use the grease and new bolts supplied with the parking brake actuator motor kit.

    To install, reverse the removal procedure.
