Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit Input Shaft Seal. Removal and Installation
Special Tool(s) /
General Equipment
|
205-153
(T80T-4000-W)
Handle |
|
308-875 Installer, Inboard Cover Seal TKIT-2012A-FL TKIT-2012A-ROW |
|
308-878 Installer, Input Seal TKIT-2012A-FL TKIT-2012A-ROW |
Removal
-
Remove the PTU/transfer case.
Refer to: Power Transfer Unit (308-07B Power Transfer Unit - 6-Speed Automatic Transmission – 6F35, Removal).
-

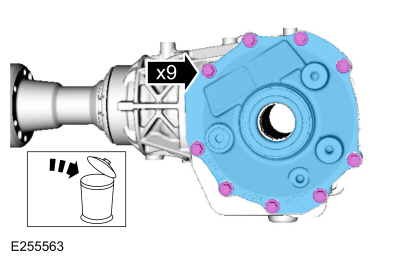

Remove and discard the PTU cover bolts and remove the PTU cover.
-

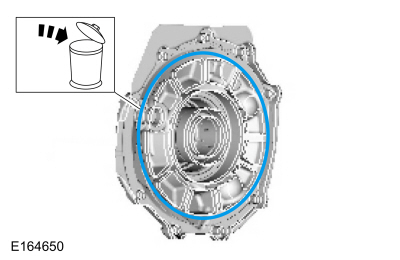

Remove and discard the PTU cover O-ring seal.
-

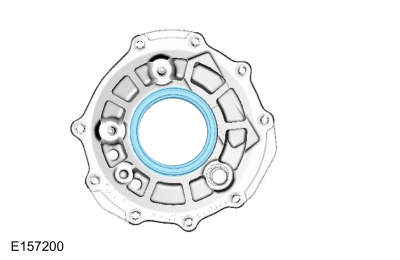

Remove and discard the RH input shaft seal.
-

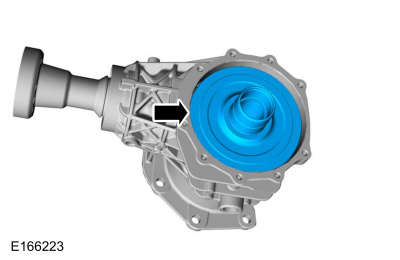

Remove the input shaft.
-

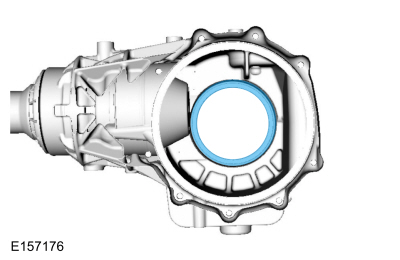

Remove and discard the LH input shaft seal.
Installation
-

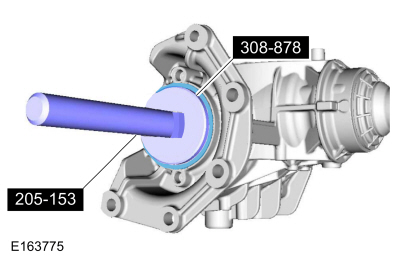

Using the special tools, install a new LH input shaft seal.
Use Special Service Tool: 308-878
Installer, Input Seal.
, 205-153
(T80T-4000-W)
Handle.
-
Install the input shaft.
-
NOTE:
The seal is correctly installed if it is flush with the transfer case cover.

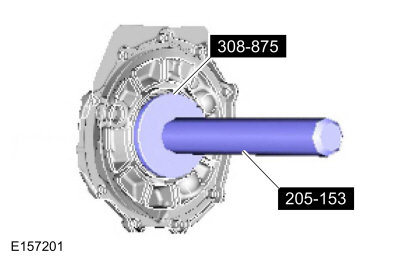

Using the special tools, install a new RH input shaft seal.
Use Special Service Tool: 308-875
Installer, Inboard Cover Seal.
, 205-153
(T80T-4000-W)
Handle.
-

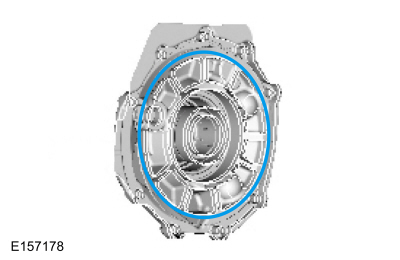

Install a new PTU cover O-ring seal.
-

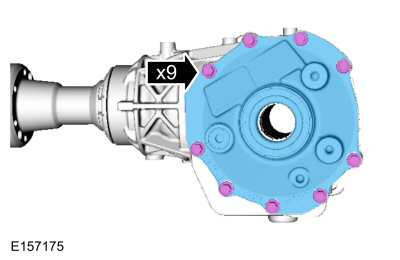

Install the PTU cover and the new PTU cover bolts.
Torque:
Stage 1:
115 lb.in (13 Nm)
Stage 2:
45°
NOTICE:
Hand start bolts for the first three threads to ensure cross-threading does not occur.
-
Install the PTU/transfer case.
Refer to: Power Transfer Unit (308-07B Power Transfer Unit - 6-Speed Automatic Transmission – 6F35, Installation).
