Ford Fusion: Rear Disc Brake / Rear Brake Flexible Hose. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Rear Disc Brake / Rear Brake Flexible Hose. Removal and Installation

Removal

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

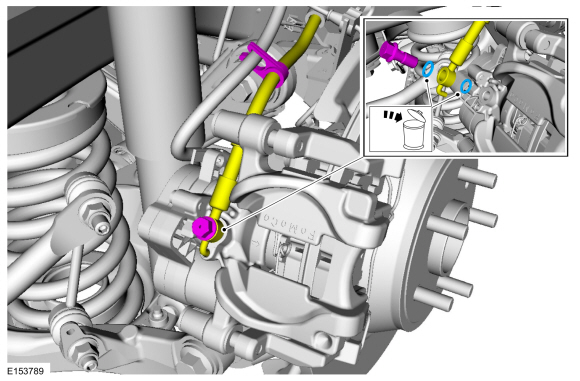

  1. Remove the flow bolt, disconnect the brake hose and detach the routing bracket from the wiring harness. Discard the washers.
    Torque: 18 lb.ft (25 Nm)
Ford Fusion. Rear Brake Flexible Hose. Removal and Installation
  1. Remove the pin-type retainer and position the splash shield aside.
Ford Fusion. Rear Brake Flexible Hose. Removal and Installation

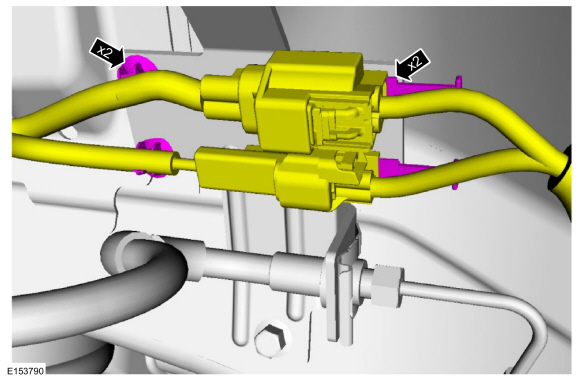

  1. Detach the pin-type retainers and the electrical connectors from the brake hose bracket.
Ford Fusion. Rear Brake Flexible Hose. Removal and Installation

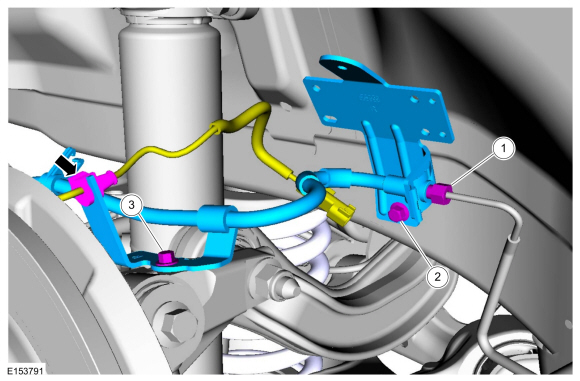

  1. Remove the brake flexible hose.
    1. Disconnect the brake tube.
      Torque: 159 lb.in (18 Nm)
    1. Remove the bolt.
      Torque: 18 lb.ft (25 Nm)
    1. Remove the bolt, detach the wheel speed sensor wiring and remove the brake flexible hose.
      Torque: 124 lb.in (14 Nm)
Ford Fusion. Rear Brake Flexible Hose. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Bleed the brake system.
    Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
