Ford Fusion: Steering Column / Steering Wheel. Removal and Installation
Removal
NOTICE:
To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the driver airbag.
Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).
-
-

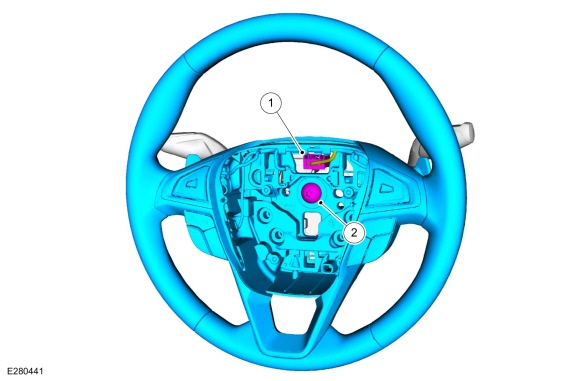

Disconnect the electrical connector.
-
Remove the bolt and the steering wheel.
Torque:
35 lb.ft (48 Nm)
-
NOTE:
Make sure the clockspring rotor does not rotate.
NOTE:
Make sure the clockspring pins are not bent or damaged.

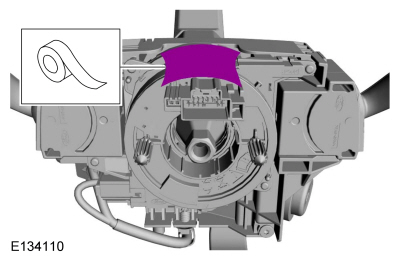

Tape the clockspring rotor to the outer housing to keep it from rotating.
Installation
NOTE:
Transfer parts as needed.
-
To install, reverse the removal procedure.
Materials
Name
Specification
Motorcraft® Instant Gel AdhesiveTA-19-C
WSS-M2G401-B5
Repair
NOTE:
If re-adhering leather to the front side of the
steering wheel only, it will not be necessary to remove the steering
wheel...
Removal
NOTICE:
To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.
NOTICE:
Precise tolerances are required when manufacturing a
steering column...
