Ford Fusion: Body Closures / Fuel Filler Door Spring. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Fuel Filler Door Spring. Removal and Installation

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Removal

  1. Open the fuel filler door.
Ford Fusion. Fuel Filler Door Spring. Removal and Installation

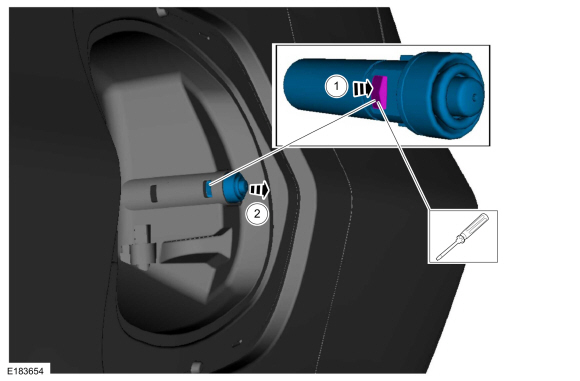

  1. Press the tab to release the fuel filler door spring from the fuel filler door assembly.
    Use the General Equipment: Flat Headed Screw Driver
Ford Fusion. Fuel Filler Door Spring. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
