Ford Fusion: Wipers and Washers / Windshield Wiper Motor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Wiper Motor. Removal and Installation

Removal

NOTE: LH windshield wiper motor shown, RH windshield wiper motor similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel.
Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

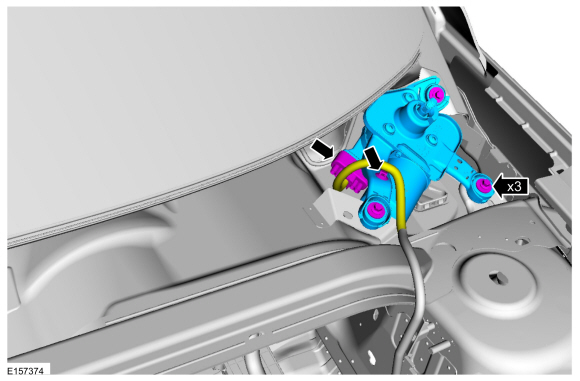

Remove the windshield wiper motor.
- Disconnect the wiper motor electrical connector.
- Remove the retainer.
- Remove the bolts and the windshield wiper motor.
  Torque: 62 lb.in (7 Nm)

Installation

To install, reverse the removal procedure.
